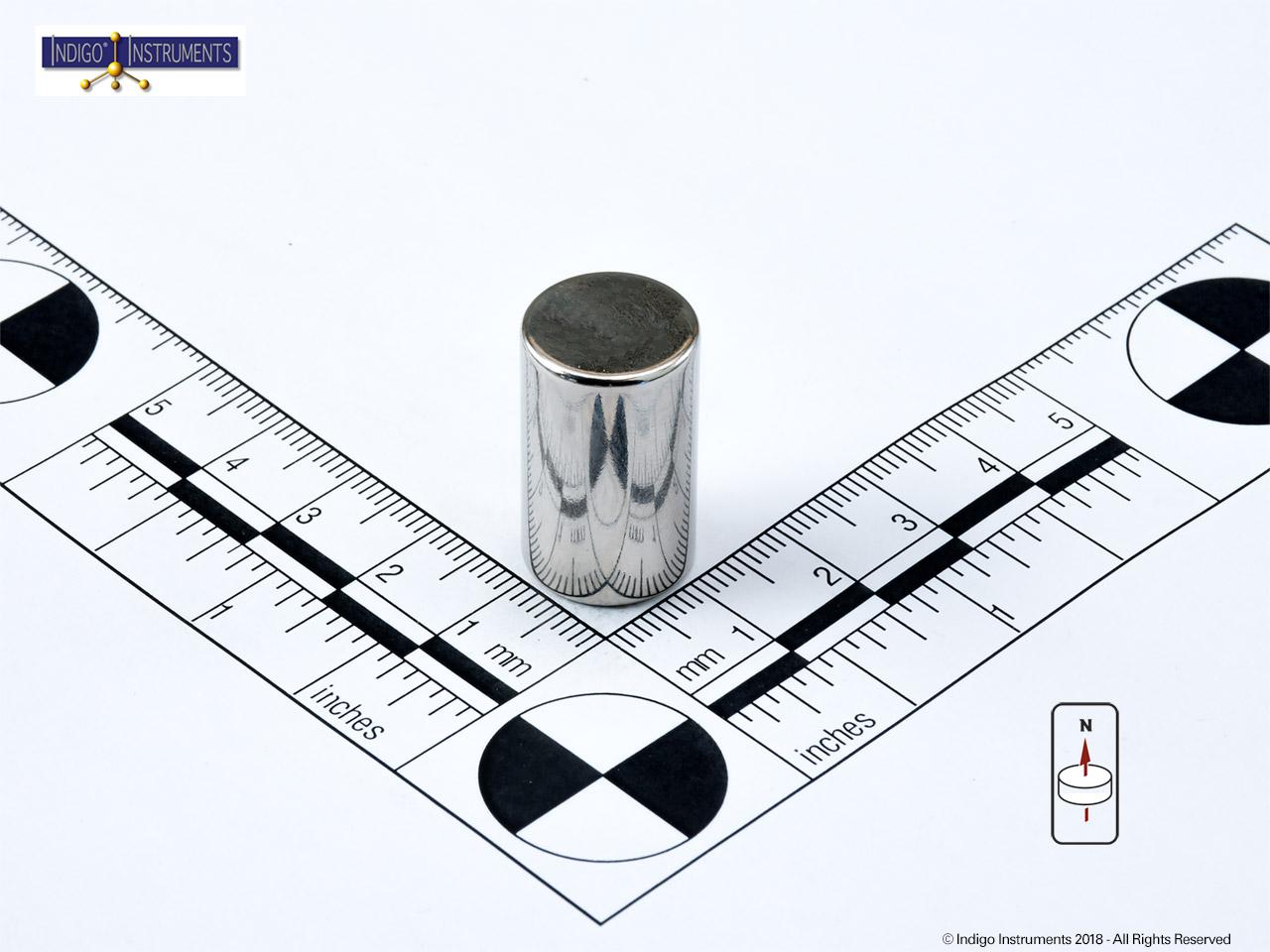

15x25mm NdFeB Cylinder Magnet

SKU: 44205-25

$6.16USD or lower Each

Save More When You Buy More!
Quantity1+10+ 100+
Price for each$6.16USD$5.60USD$4.73USD
Your savings - 9.09%23.21%
Qty:

Imagine you're 125mm (400 feet) above ground at the top of a Big Drop Tower amusement park ride. The gondola you're in is released & your cannonball ride to the ground begins. You're in free fall. Ever wondered what keeps you from slamming into the ground? What kind of brakes does this thing have?

The 15x25mm NdFeB neodymium cylinder magnet is super strong & can lift 20+ lb metal objects. It's perfect for simulating eddy current braking. Drop this magnet down a 3/4" diameter copper or aluminum pipe & be amazed. See the video below.

Don't have a 3/4" copper pipe? You can also do this with a 1/2" pipe using our 10x10mm, 10x12.5mm, 10x15mm, 10x25mm, 12.5x12.5mm or 12x25mm rod magnets. Or, go big with a 1" pipe & use the 25x20mm big disc magnet....bring a book.

The Indigo 15x25mm neodymium cylinder magnet is roughly equivalent to the KJ Magnetics: D9X0, 9/16 x 1\\\\" & DAX0, 5/8 x 1\\\\".

Currently Out of Stock
Details

The Mark II Magnaprobe is an excellent tool for detecting magnetic fields & is must for any college or high school electricity & magnetism lab. See it in action below in our eddy current-drop tower braking simulation or read our blog Eddy Current Copper Tube Drop Tower Brake Test.

Even more impressive is the ultrasensitive Mark I Magnaprobe which responds to magnetic fields as weak as 0.3 gauss. A must if your cyclotron or particle collider is slightly off. In this instance, it was able to detect the eddy current in the simulation below at a distance of over 1m (3.3 feet)!



Specifications
Field Strength (Gauss) & Pull Force in Pounds & Kilograms at 5 Distances Above Magnet
SKU: 44205-25 Size: 15 × 25mm
Distance (mm): 0 0.1 1 10 100
Gauss 6321.7 6235.7 5469.2 1173.5 6.6
Lb 23.90 23.25 17.89 0.82 0.00
Kg 10.86 10.57 8.13 0.37 0.00



Magnet Documentation

Drawing Compliance MSDS ROHS Graph
Magnet Technical Diagram Certificate of Compliance MSDS ROHS N42 Graph


Specifications for Fully Sintered/Pressed Neodymium Magnets, N42 Grade

RemanentFlux Density (Br) 13,000G; 1300mT
Coercivity (bHc) 12.0 Oe; 955 A/m
Intrinsic Coercivity (jHc) 17.0 Oe; 1353 A/m
Max.Energy Product (BHMax) 42 MGO; 334 kJ/m3
Curie Temperature (Tc) 310oC
Working Temperature (Tw) 80oC
Temp.Coefficient (αB)r -0.12%/Co


Tolerances - Sintered Rare Earth Magnets

  Dimensions Tolerances

Size:
Unfinished Surfaces:
Dimensions perpendicular to pressing (die formed)

Inches mm Inches mm
0 to 0.125 0 to 3 +/- 0.006 +/- 0.15
0.126 to 0.625 3 to 16 +/- 0.012 +/- 0.30
0.626 to 0.875 16 to 22 +/- 0.018 +/- 0.45
0.876 and Up 22 and Up +/- 2.5% +/- 2.5%


American (Imperial)/Metric Conversion Table

Inch Decimal mm Rounded
1/32" 0.031 0.8 1
3/32" 0.094 2.4 2.5
5/32" 0.156 4.0 4
1/16" 0.063 1.6 1.5
3/16" 0.188 4.8 5
2/10" 0.200 5.1 5
1/8" 0.125 3.2 3.75
1/4" 0.250 6.4 7.5
5/16" 0.313 7.9 7.5
3/8" 0.375 9.5 10
13/32" 0.406 10.3 10
1/2" 0.500 12.7 12.5
9/16" 0.563 14.3 15
5/8" 0.625 15.9 15
11/16" 0.688 17.5 17.5
3/4" 0.750 19.1 20
13/16" 0.813 20.6 20
7/8" 0.875 22.2 22.5
15/16" 0.938 23.8 25
