10x7.5mm Neodymium Disc Magnet

SKU: 44203-7.5

$1.47USD or lower Each

Save More When You Buy More!
Quantity1+10+ 100+ 1000+
Price for each$1.47USD$1.33USD$1.11USD$0.89USD
Your savings - 9.52%24.49%39.46%
Qty:
[5]   1 Reviews    | Write a Review

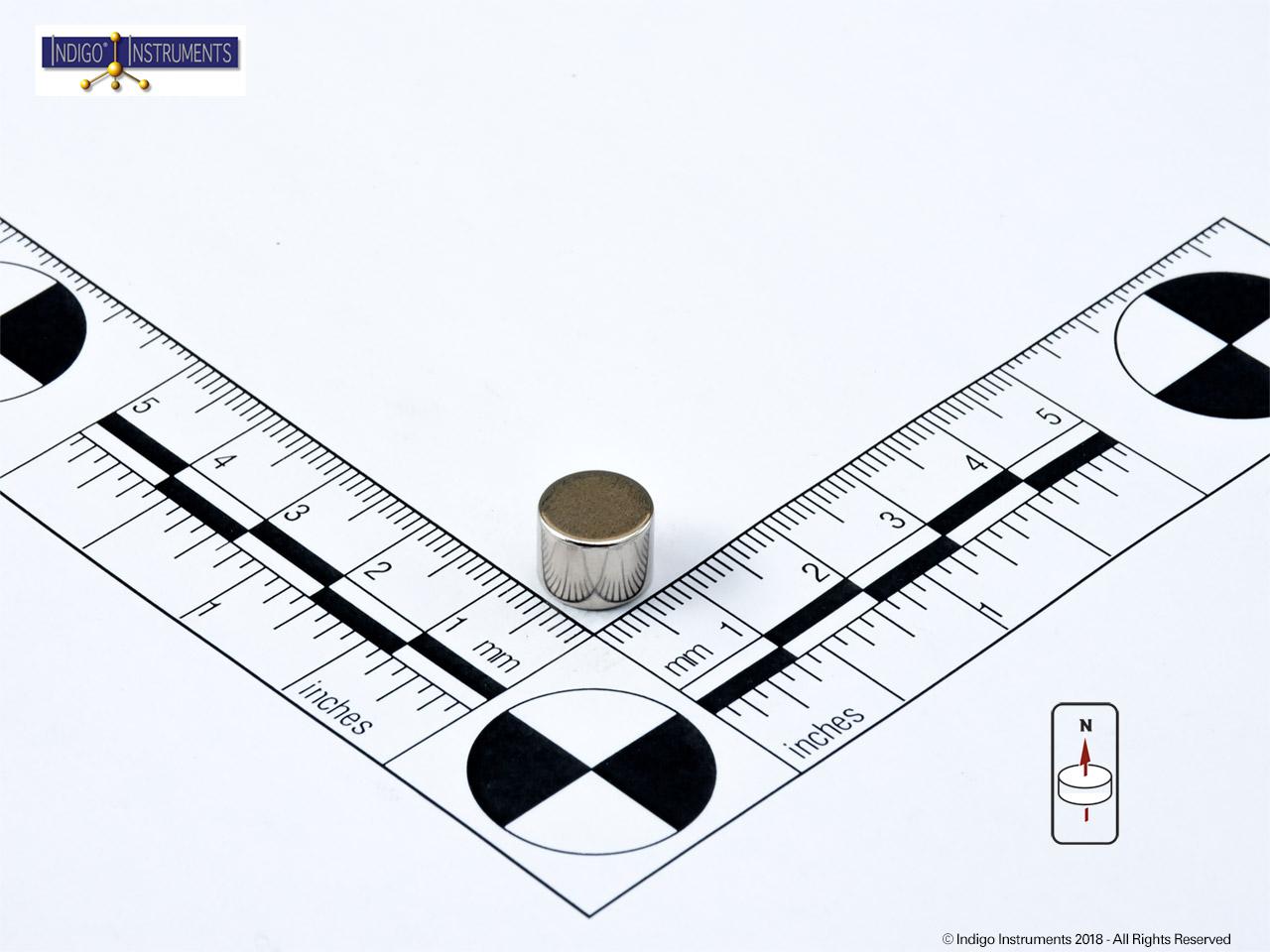

The 10x7.5mm (~3/8 x 5/16) neodymium disc magnet has a pull force of roughly 8 lbs & can used in a variety of hobby magnet craft applications. These can support heavy posters, pictures frames, hanging towels, magnetic boards, calendars & sculpted materials. Why glue when any ferrous metal surface will do?

Have some space limitations or need stronger? Take a look at all our 10mm wide disc magnets.

See other examples for scrapbooking, jewelry clasps for brooches, necklaces & pendants or even hanging unique wall art & plant propagation frames.

Details

The Mark I Magnaprobe can respond to as little as 0.3 gauss & will detect weaknesses in magnetic shielding. The Mark II Magnaprobe is a fast & convenient way to confirm magnet are positioned with their poles pointing correctly.

Specifications
Field Strength (Gauss) & Pull Force in Pounds & Kilograms at 5 Distances Above Magnet
SKU: 44203-7.5      Size:  10 × 7.5mm
Distance (mm): 0 0.1 1 10 100
Gauss 5491.5 5381.8 4394.4 442.8 1.1
Lb 7.94 7.63 5.08 0.05 0.00
Kg 3.61 3.47 2.31 0.02 0.00



Magnet Documentation

Drawing Compliance MSDS ROHS Graph
Magnet Technical Diagram Certificate of Compliance MSDS ROHS N42 Graph


Specifications for Fully Sintered/Pressed Neodymium Magnets, N42 Grade

RemanentFlux Density (Br) 13,000G; 1300mT
Coercivity (bHc) 12.0 Oe; 955 A/m
Intrinsic Coercivity (jHc) 17.0 Oe; 1353 A/m
Max.Energy Product (BHMax) 42 MGO; 334 kJ/m3
Curie Temperature (Tc) 310oC
Working Temperature (Tw) 80oC
Temp.Coefficient (αB)r -0.12%/Co


Tolerances - Sintered Rare Earth Magnets

  Dimensions Tolerances

Size:
Unfinished Surfaces:
Dimensions perpendicular to pressing (die formed)

Inches mm Inches mm
0 to 0.125 0 to 3 +/- 0.006 +/- 0.15
0.126 to 0.625 3 to 16 +/- 0.012 +/- 0.30
0.626 to 0.875 16 to 22 +/- 0.018 +/- 0.45
0.876 and Up 22 and Up +/- 2.5% +/- 2.5%


American (Imperial)/Metric Conversion Table

Inch Decimal mm Rounded
1/32" 0.031 0.8 1
3/32" 0.094 2.4 2.5
5/32" 0.156 4.0 4
1/16" 0.063 1.6 1.5
3/16" 0.188 4.8 5
2/10" 0.200 5.1 5
1/8" 0.125 3.2 3.75
1/4" 0.250 6.4 7.5
5/16" 0.313 7.9 7.5
3/8" 0.375 9.5 10
13/32" 0.406 10.3 10
1/2" 0.500 12.7 12.5
9/16" 0.563 14.3 15
5/8" 0.625 15.9 15
11/16" 0.688 17.5 17.5
3/4" 0.750 19.1 20
13/16" 0.813 20.6 20
7/8" 0.875 22.2 22.5
15/16" 0.938 23.8 25
