3D Printed Scanner Targets

SKU: 44201-2.5

$0.24USD or lower Each

Save More When You Buy More!
Quantity1+10+ 100+ 1000+
Price for each$0.24USD$0.22USD$0.16USD$0.12USD
Your savings - 8.33%33.33%50%
Qty:
[5]   2 Reviews    | Write a Review

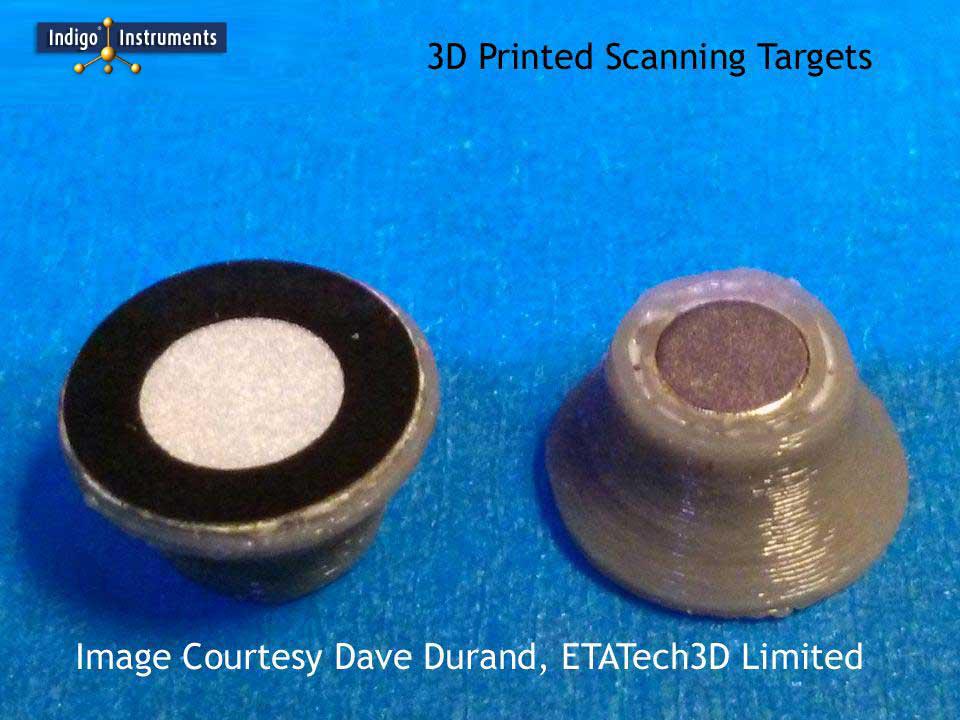

These magnetic scanning targets were produced in a 3D printer using 5x2.5mm disc magnets. The magnetic tees are better than adhesive ones when used with a metal because they don't move when bumped and are reusable.

Details

This 3D printed magnetic scanner positioning tee image was provided to use by Dave Durand of 3ETATech for the image.

Related information or images
Specifications

You can open or download a copy of the Hysteresis Graph or ROHS certification that applies to all our N42 grade magnets. Field Strength (Gauss) & Pull Force in Pounds & Kilograms at 5 Distances Above Magnet

Field Strength (Gauss) & Pull Force in Pounds & Kilograms at 5 Distances Above Magnet
SKU: 44201-2.5      Size:  5 × 2.5mm
Distance (mm): 0 0.1 1 10 100
Gauss 4666.9 4493.7 2919.5 68.9 0.1
Lb 1.29 1.20 0.50 0.00 0.00
Kg 0.59 0.54 0.23 0.00 0.00



  • N42 grade: ~13,200 gauss (1.3T)
  • magnetized through the thickness
  • nickel-copper-nickel coated
  • size tolerance for dimensions <10mm: +/- 0.05mm
  • size tolerance for dimensions >10mm: +/- 0.1mm
  • magnet strength variance piece to piece: <2%
  • 80C maximum operating temperature
