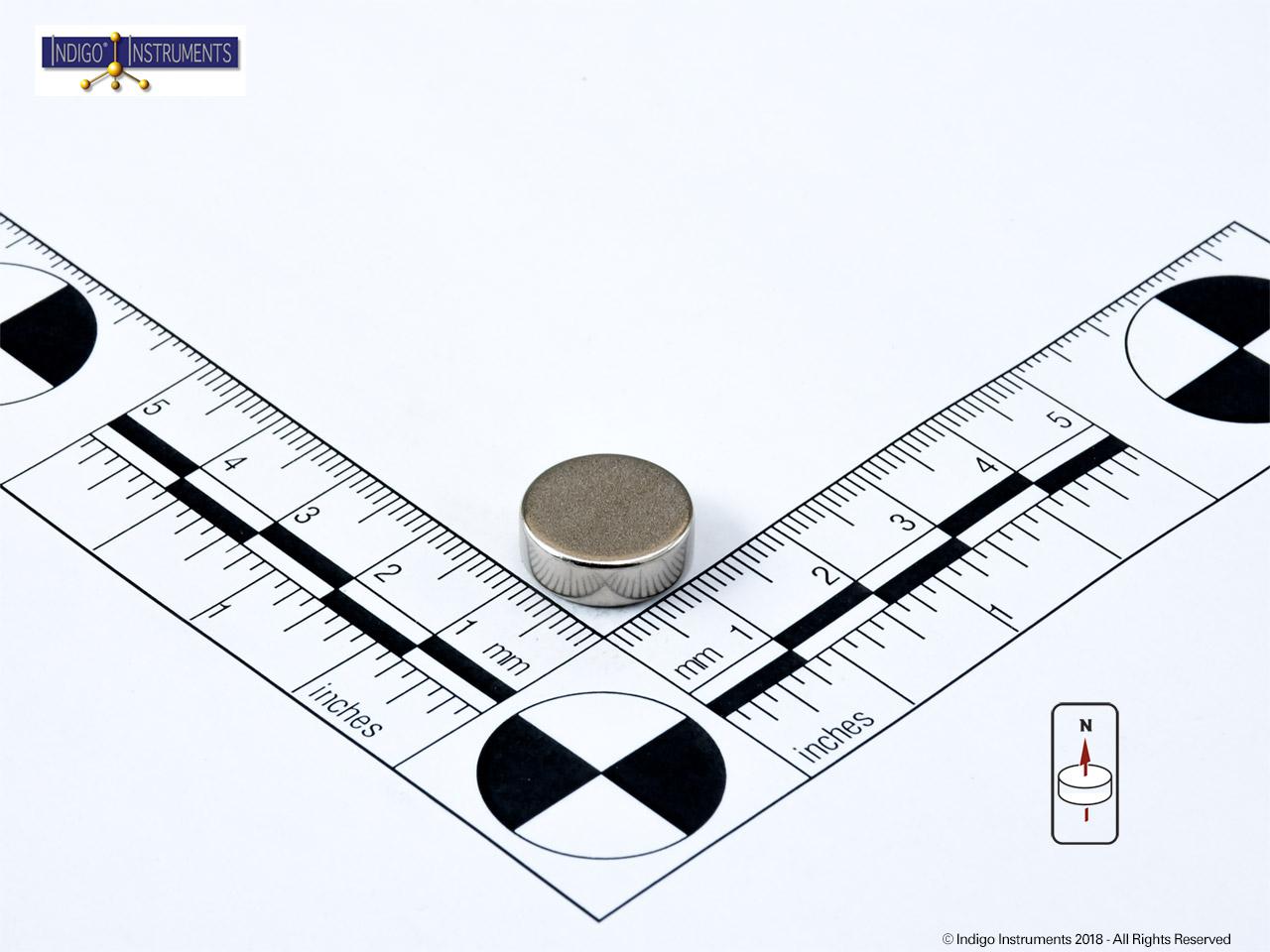

15x5mm Neodymium Disk Magnet

SKU: 44205-5

$1.91USD or lower Each

Save More When You Buy More!
Quantity1+10+ 100+ 1000+
Price for each$1.91USD$1.72USD$1.44USD$1.16USD
Your savings - 9.95%24.61%39.27%
Qty:
[5]   3 Reviews    | Write a Review

These super strong 15x5mm neodymium rare earth magnets are perfect for making your own live action role playing costumes. Whether you get your inspiration from comic books, sci-fi, video games or manga Indigo Nd magnets can turn fantasy into reality. Use them in hairpieces including wigs & ponytails & attach to hats, helmets or headbands.

Not sure whether magnets or Velcro is the way to go? Removing something attached with a magnet is silent, Velcro is not. Velcro is machine washable, magnets are nots. Velcro needs direct contact, magnets can attract at a distance. Something made from foam avoids weight problems. Heavy layered replica armor might stronger magnets but dipped into rubber coating material can help deal with shear issues for vertically hung things.

Details
Related information or images
Specifications
Field Strength (Gauss) & Pull Force in Pounds & Kilograms at 5 Distances Above Magnet
SKU: 44205-5      Size:  15 × 5mm
Distance (mm): 0 0.1 1 10 100
Gauss 3661.0 3623.3 3250.7 623.2 1.7
Lb 12.10 11.85 9.54 0.35 0.00
Kg 5.50 5.39 4.34 0.16 0.00



Magnet Documentation

Drawing Compliance MSDS ROHS Graph
Magnet Technical Diagram Certificate of Compliance MSDS ROHS N42 Graph


Specifications for Fully Sintered/Pressed Neodymium Magnets, N42 Grade

RemanentFlux Density (Br) 13,000G; 1300mT
Coercivity (bHc) 12.0 Oe; 955 A/m
Intrinsic Coercivity (jHc) 17.0 Oe; 1353 A/m
Max.Energy Product (BHMax) 42 MGO; 334 kJ/m3
Curie Temperature (Tc) 310oC
Working Temperature (Tw) 80oC
Temp.Coefficient (αB)r -0.12%/Co


Tolerances - Sintered Rare Earth Magnets

  Dimensions Tolerances

Size:
Unfinished Surfaces:
Dimensions perpendicular to pressing (die formed)

Inches mm Inches mm
0 to 0.125 0 to 3 +/- 0.006 +/- 0.15
0.126 to 0.625 3 to 16 +/- 0.012 +/- 0.30
0.626 to 0.875 16 to 22 +/- 0.018 +/- 0.45
0.876 and Up 22 and Up +/- 2.5% +/- 2.5%


American (Imperial)/Metric Conversion Table

Inch Decimal mm Rounded
1/32" 0.031 0.8 1
3/32" 0.094 2.4 2.5
5/32" 0.156 4.0 4
1/16" 0.063 1.6 1.5
3/16" 0.188 4.8 5
2/10" 0.200 5.1 5
1/8" 0.125 3.2 3.75
1/4" 0.250 6.4 7.5
5/16" 0.313 7.9 7.5
3/8" 0.375 9.5 10
13/32" 0.406 10.3 10
1/2" 0.500 12.7 12.5
9/16" 0.563 14.3 15
5/8" 0.625 15.9 15
11/16" 0.688 17.5 17.5
3/4" 0.750 19.1 20
13/16" 0.813 20.6 20
7/8" 0.875 22.2 22.5
15/16" 0.938 23.8 25
