The Mark I Magnaprobe can respond to as little as 0.3 gauss & will detect weaknesses in magnetic shielding. The Mark II Magnaprobe is a fast & convenient way to confirm magnet are positioned with their poles pointing correctly.
| Field Strength (Gauss) & Pull Force in Pounds & Kilograms at 5 Distances Above Magnet |

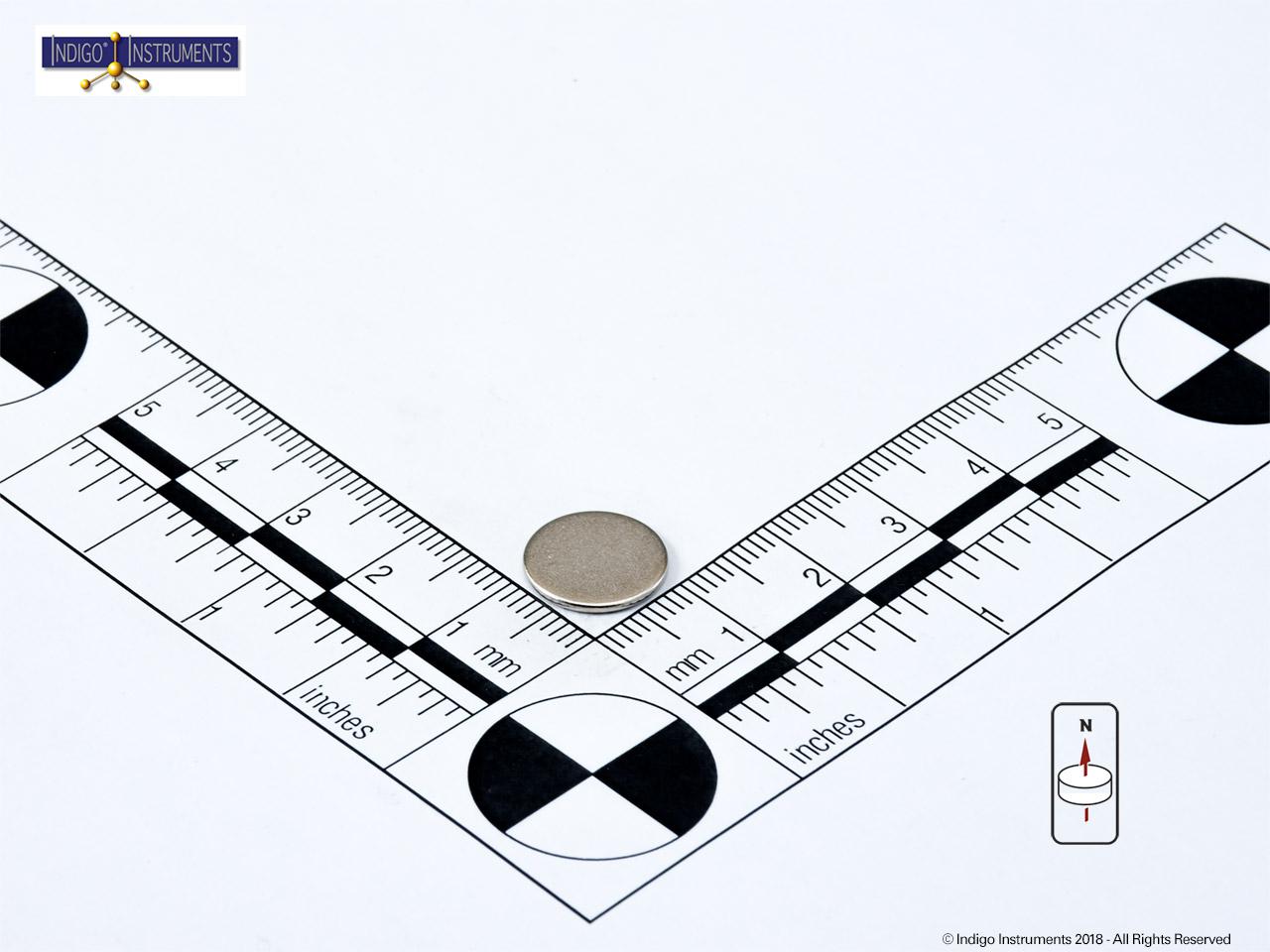

| SKU: 44204-1 Size: 12.5x1mm |
| Distance (mm): |
| Gauss |
1042.7 |
1038.4 |
968.8 |
141.6 |
0.3 |
| Lb |
1.63 |
1.62 |
1.41 |
0.03 |
0.00 |
| Kg |
0.74 |
0.73 |
0.64 |
0.01 |
0.00 |
Specifications for Fully Sintered/Pressed Neodymium Magnets, N42 Grade
| RemanentFlux Density (Br) |
13,000G; 1300mT |
| Coercivity (bHc) |
12.0 Oe; 955 A/m |
| Intrinsic Coercivity (jHc) |
17.0 Oe; 1353 A/m |
| Max.Energy Product (BHMax) |
42 MGO; 334 kJ/m3 |
| Curie Temperature (Tc) |
310oC |
| Working Temperature (Tw) |
80oC |
| Temp.Coefficient (αB)r |
-0.12%/Co |
Tolerances - Sintered Rare Earth Magnets
| |
Dimensions |
Tolerances |
|
Size:
Unfinished Surfaces:
Dimensions perpendicular to pressing (die formed)
|
Inches |
mm |
Inches |
mm |
| 0 to 0.125 |
0 to 3 |
+/- 0.006 |
+/- 0.15 |
| 0.126 to 0.625 |
3 to 16 |
+/- 0.012 |
+/- 0.30 |
| 0.626 to 0.875 |
16 to 22 |
+/- 0.018 |
+/- 0.45 |
| 0.876 and Up |
22 and Up |
+/- 2.5% |
+/- 2.5% |
American (Imperial)/Metric Conversion Table
| 1/32" |
0.031 |
0.8 |
1 |
| 3/32" |
0.094 |
2.4 |
2.5 |
| 5/32" |
0.156 |
4.0 |
4 |
| 1/16" |
0.063 |
1.6 |
1.5 |
| 3/16" |
0.188 |
4.8 |
5 |
| 2/10" |
0.200 |
5.1 |
5 |
| 1/8" |
0.125 |
3.2 |
3.75 |
| 1/4" |
0.250 |
6.4 |
7.5 |
| 5/16" |
0.313 |
7.9 |
7.5 |
| 3/8" |
0.375 |
9.5 |
10 |
| 13/32" |
0.406 |
10.3 |
10 |
| 1/2" |
0.500 |
12.7 |
12.5 |
| 9/16" |
0.563 |
14.3 |
15 |
| 5/8" |
0.625 |
15.9 |
15 |
| 11/16" |
0.688 |
17.5 |
17.5 |
| 3/4" |
0.750 |
19.1 |
20 |
| 13/16" |
0.813 |
20.6 |
20 |
| 7/8" |
0.875 |
22.2 |
22.5 |
| 15/16" |
0.938 |
23.8 |
25 |
