Myristicin

Put together a 3D molecular model of Myristicin using Genuine Molymod Components by Indigo Instruments

Myristicin has a heterocyclic chemical structure of a benzodioxole which is a benzene ring fused to a dioxole. It is found in a variety of plants such as dill, nutmeg, parsley, pepper spice, wild carrot and highbush blueberry.

The essential oil of nutmeg also contains other volatile oils that are monoterpine hydrocarbons, monoterpine alcohols, or aromatics such as elemicin, safrole, methyleugenol, eugenol & isoeugenol

A molecular model of Myristicin in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
192.214 C11H12O3

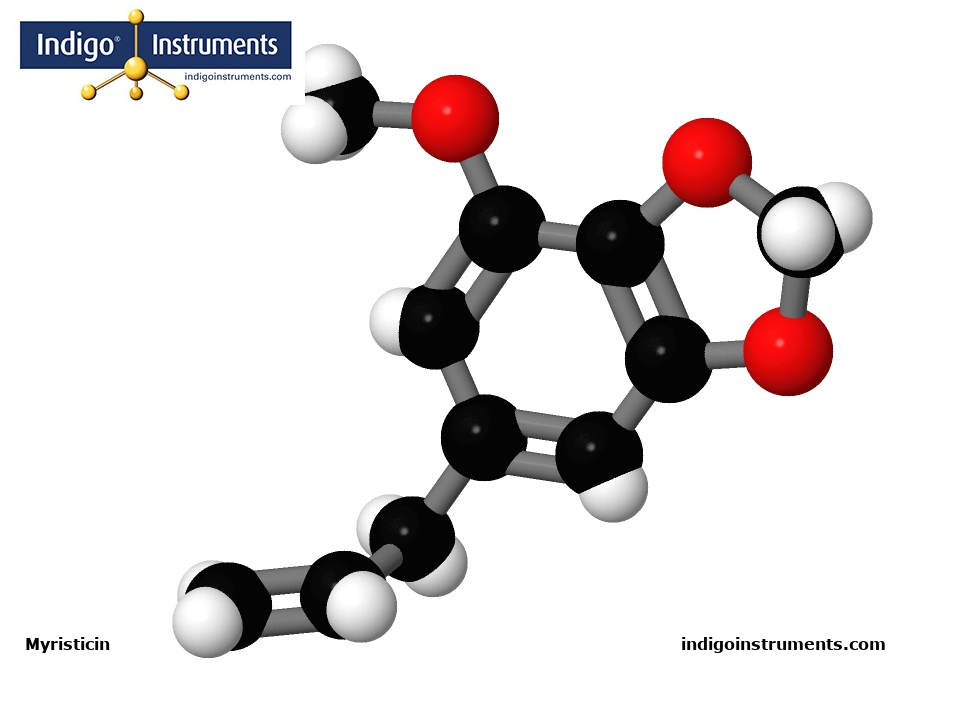

Myristicin molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm12
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees3
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm11
61012EBond, Molymod, grey (single), 20mm11
61013EBond, Molymod, grey (double/triple), 35mm8
61015EBond, Molymod, opaque, 2mm (for spacefilling models)12
Synonyms
IUPAC Name: 4-methoxy-6-prop-2-enyl-1,3-benzodioxole , InChI=1S/C11H12O3/c1-3-4-8-5-9(12-2)11-10(6-8)13-7-14-11/h3,5-6H,1,4,7H2,2H3 , InChIKey: BNWJOHGLIBDBOB-UHFFFAOYSA-N , SMILES: COC1=CC(=CC2=C1OCO2)CC=C , CAS: 607-91-0 , 6-Allyl-4-methoxy-1,3-benzodioxole , Myristicin , 5-Allyl-2,3-(methylendioxy)anisole , 1,3-Benzodioxole, 4-methoxy-6-(2-propenyl)- , 1,3-Benzodioxole, 4-methoxy-6-(2-propenyl)- (9CI) , 4-Methoxy-6-(2-propenyl)-1,3-benzodioxole , 5-19-02-00631 (Beilstein Handbook Reference) , 5-Allyl-1-methoxy-2,3-(methylenedioxy)benzene ,
