Triphenyl Phosphine

Form a 3D chemical structure model of Triphenyl Phosphine out of Genuine Molymod Components by indigoinstruments.com

Triphenylphosphine (PPh3 or Ph3P) is an organophosphorus compound with a phosphorus atom bonded to three phenyl (C6H5) groups & is classified as a monodentate ligand. It acts as a reducing agent when used in organic and organometallic compound synthesis. Triphenylphosphine can also be used to make vitamin D2, vitamin A, and the antibiotic clindamycin. This compound possesses C3 point group symmetry.

A molecular model of Triphenyl Phosphine in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
262.2903 C18H15P

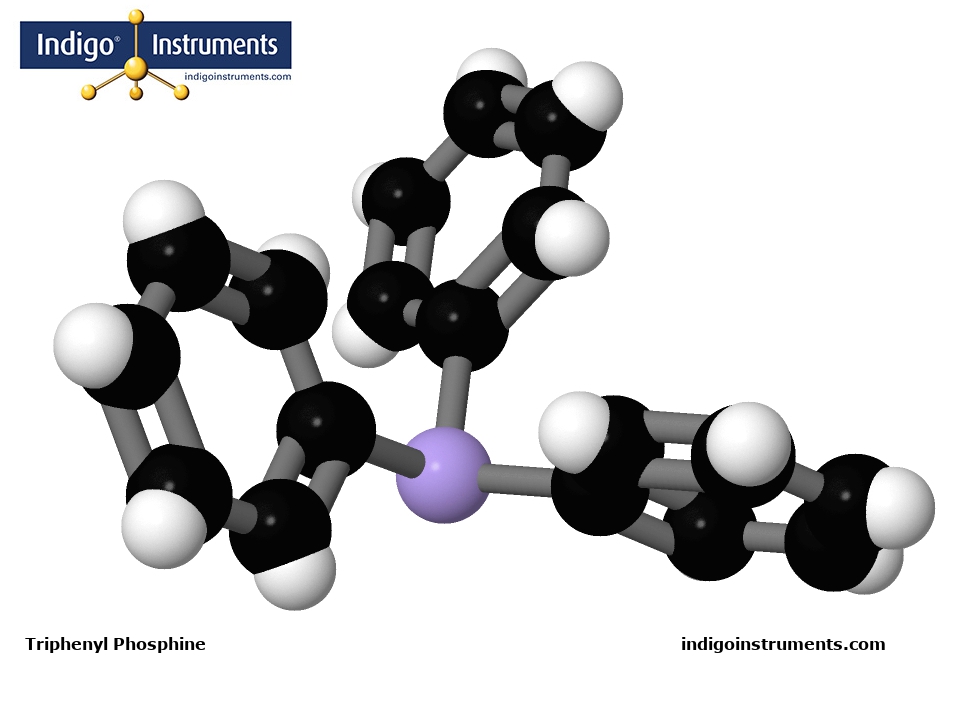

Triphenyl Phosphine molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm15
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm18
60407EAtom, Molymod, purple (phosphorus), 4 hole, 109.5 deg., 23mm1
61012EBond, Molymod, grey (single), 20mm12
61013EBond, Molymod, grey (double/triple), 35mm18
61015EBond, Molymod, opaque, 2mm (for spacefilling models)15
Synonyms
IUPAC Name: triphenylphosphane , InChI=1S/C18H15P/c1-4-10-16(11-5-1)19(17-12-6-2-7-13-17)18-14-8-3-9-15-18/h1-15H , InChIKey: RIOQSEWOXXDEQQ-UHFFFAOYSA-N , SMILES: C1=CC=C(C=C1)P(C2=CC=CC=C2)C3=CC=CC=C3 , CAS: 603-35-0 ,
