Phosphatidylcholine

Build a molecular structure model of phosphatidylcholine with Genuine Molymod Atoms & Bonds from indigoinstruments.com

Phosphatidylcholine is a phospholipid found in biological membranes that consists of a glycerol molecule connected to two esterified fatty acid chains at the sn-1 and sn-2 positions. The sn-3 position links to a phosphate group, which is in turn bonded to a choline headgroup, a quaternary ammonium compound. This amphipathic architecture, nonpolar tails and a polar head accounts for its role in cell membrane lipid bilayers. Use this molecular in conjunction with lectures on cell membrane assembly and how phosphatidylcholine contributes to metabolic pathways, skin health, and lipid signalling.

A molecular model of Phosphatidylcholine in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
760.0855 C42H82NO8P

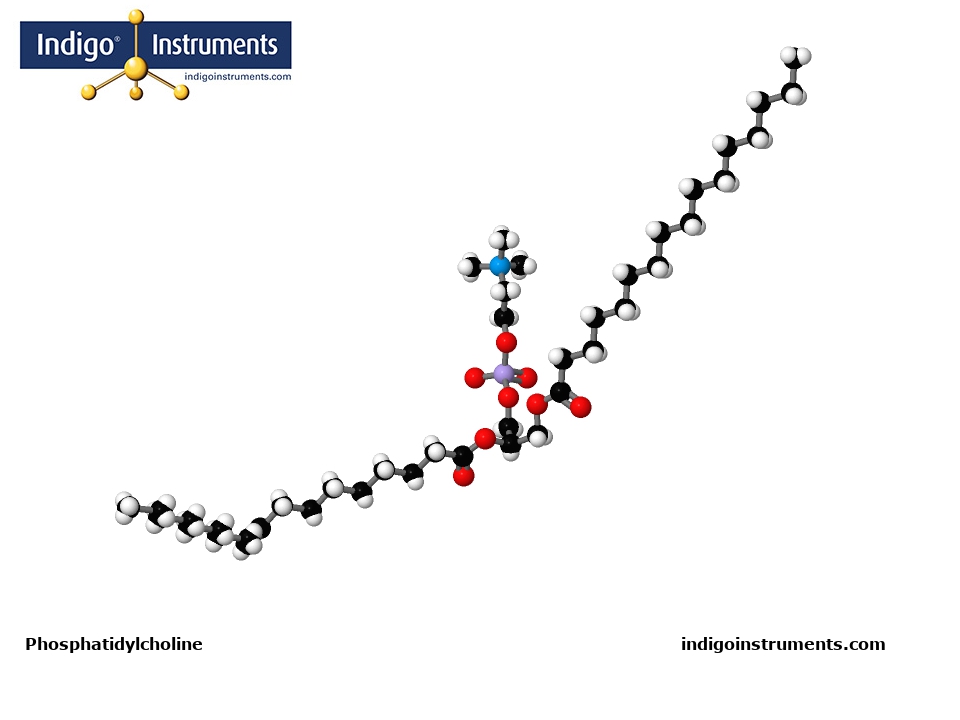

Phosphatidylcholine molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60103EAtom, Molymod, red (oxygen), 1 hole, 20mm2
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm82
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees6
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm42
60401EAtom, Molymod, blue (nitrogen), 4 hole, 109.5 deg., 23mm1
60407EAtom, Molymod, purple (phosphorus), 4 hole, 109.5 deg., 23mm1
61012EBond, Molymod, grey (single), 20mm48
61013EBond, Molymod, grey (double/triple), 35mm6
61015EBond, Molymod, opaque, 2mm (for spacefilling models)82
Synonyms
  • IUPAC Name" 2-[2,3-diformyloxypropoxy(hydroxy)phosphoryl]oxyethyl-trimethylazanium
  • InChI=1S/C10H20NO8P/c1-11(2,3)4-5-18-20(14,15)19-7-10(17-9-13)6-16-8-12/h8-10H,4-7H2,1-3H3/p+1
  • InChIKey: RBAWEGYJSDPEHX-UHFFFAOYSA-O
  • SMILES: C[N+](C)(C)CCOP(=O)(O)OCC(COC=O)OC=O
  • 1-Hexadecanoyl-2-(cis-9-octadecenoyl)-sn-glycero-3-phosphocholine
  • 1-Palmitoyl-2-oleoyl-3-sn-phosphatidylcholine
  • 1-Palmitoyl-2-oleoyl-L-alpha-lecithin
  • 1-Palmitoyl-2-oleoyl-L-alpha-phosphatidylcholine
  • 1-Palmitoyl-2-oleoyl-sn-3-phosphocholine
  • 1-Palmitoyl-2-oleoyl-sn-glycero-3-phosphatidylcholine
  • 1-Palmitoyl-2-oleoyl-sn-glycero-3-phosphorylcholine
  • 1-Palmitoyl-2-oleoyl-sn-glycero-phosphatidylcholine
  • 1-Palmitoyl-2-oleoyl-sn-glycero-phosphocholine
  • 1-Palmitoyl-2-oleoyl-sn-glycerol-3-phosphatidylcholine
  • 1-Palmitoyl-2-oleoyl-sn-glyceryl-3-phosphorylcholine
  • 1-Palmitoyl-2-oleyl-3-sn-phosphatidylcholine
  • 2-Oleoyl-1-palmitoyl-sn-glycero-3-phosphocholine
  • 3,5,8-Trioxa-4-phosphahexacos-17-en-1-aminium, 4-hydroxy-N,N,N-trimethyl-9-oxo-7-[[(1-oxohexadecyl)oxy]methyl]-, inner salt, 4-oxide, (7R,17Z)- 3,5,8-Trioxa-4-phosphahexacos-17-en-1-aminium, 4-hydroxy
  • 3,5,8-Trioxa-4-phosphahexacos-17-en-1-aminium, 4-hydroxy-N,N,N-trimethyl-9-oxo-7-[[(1-oxohexadecyl)oxy]methyl]-, inner salt, 4-oxide, [R-(Z)]-
  • 3-sn-Phosphatidylcholine, 2-oleoyl-1-palmitoyl
