Muscimol (Agarin)

Create a 3D chemical structure model of Muscimol (Ibotenate) from Authentic Molymod Components by Indigo Instruments

Muscimol is a psychoactive chemical extract of the mushroom Amanita muscaria and related species. Its molecular structure can be described as an alkaloid isoxazole derivative with alcohol & aminomethyl functional groups.

Muscimol can have psychoactive effects such as visual distortions and hallucinations and mood swings, Like many mushroom compounds there is a risk of toxicity with symptoms that include nausea, vomiting, diarrhea, confusion, delirium, and in severe cases, seizures and coma.

A molecular model of Muscimol in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
114.1036 C4H6N2O2

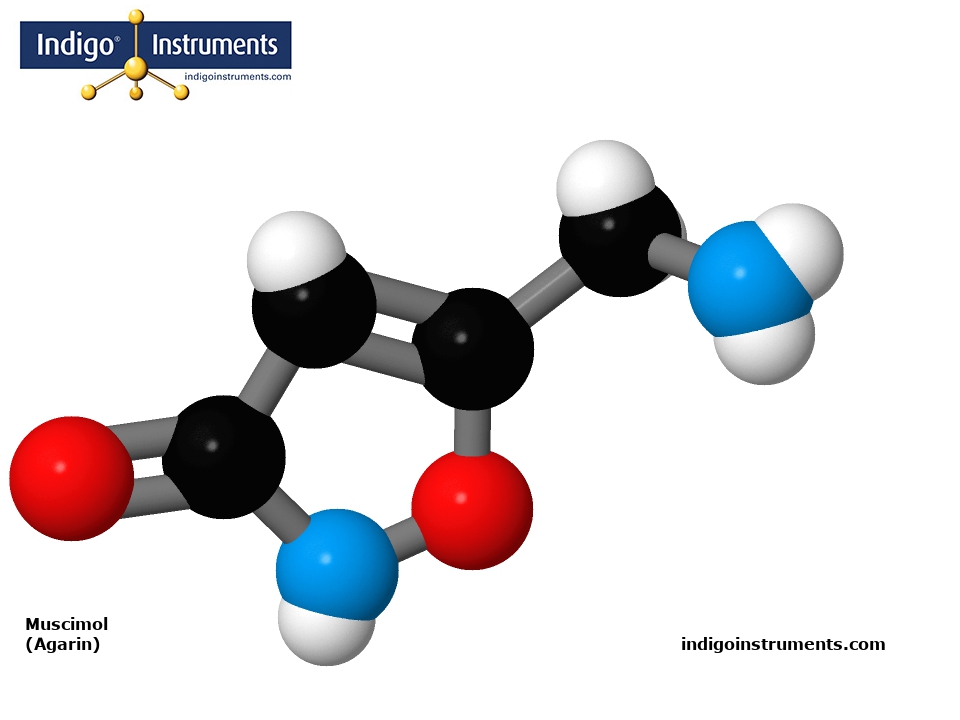

Muscimol (Agarin) molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm6
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees2
60300EAtom, Molymod, blue (nitrogen), 3 hole, 107 degrees, 23mm1
60311EAtom, Molymod, blue (nitrogen), 3 hole, 120 degrees, 23mm1
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm4
61012EBond, Molymod, grey (single), 20mm6
61013EBond, Molymod, grey (double/triple), 35mm4
61015EBond, Molymod, opaque, 2mm (for spacefilling models)6
Synonyms
IUPAC Name: 5-(aminomethyl)-1,2-oxazol-3-one , InChI=1S/C4H6N2O2/c5-2-3-1-4(7)6-8-3/h1H,2,5H2,(H,6,7) , InChIKey: ZJQHPWUVQPJPQT-UHFFFAOYSA-N , SMILES: C1=C(ONC1=O)CN , CAS: 2763-96-4 , 5-(aminomethyl)isoxazol-3-one , 5-(aminomethyl)-3-isoxazolone , 3(2H)-Isoxazolone, 5-(aminomethyl)- , 3-Hydroxy-5-aminomethylisoxazole , 3-Hydroxy-5-aminomethylisoxazole-agarin , 3-Isoxazolol, 5-(aminomethyl)- , 5-(Aminomethyl)-3(2H)-isoxazolone , 5-(Aminomethyl)-3-isoxazolol , 5-(Aminomethyl)isoxazol-3-ol hydrate , 5-Aminomethyl-3-hydroxyisoxazole , 5-Aminomethyl-3-isoxyzole ,
