Chlorpyrifos

Fabricate a 3D molecular structure model of Chlorpyrifos out of Authentic Molymod Components by Indigo Instruments

Chlorpyrifos is an insecticide, acaricide, & miticide. It is an acetylcholinesterase inhibitor used to control soil borne pests. It is an organic thiophosphate based whose structure is classed as a chloropyridine.

Among the most common acetylcholinesterase inhibitors are phosphorus-based compounds, which are designed to bind to the active site of the enzyme. The structural requirements are a phosphorus atom bearing two lipophilic groups, a leaving group (such as a halide or thiocyanate), and a terminal oxygen.

For the past 20 years it was topic of debate and untlimately banned in 2021 in the US for use on food crops. Since then, ongoing litigation sees this ban still not in full force.

A molecular model of Chlorpyrifos in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
350.5836 C9H11Cl3NO3PS

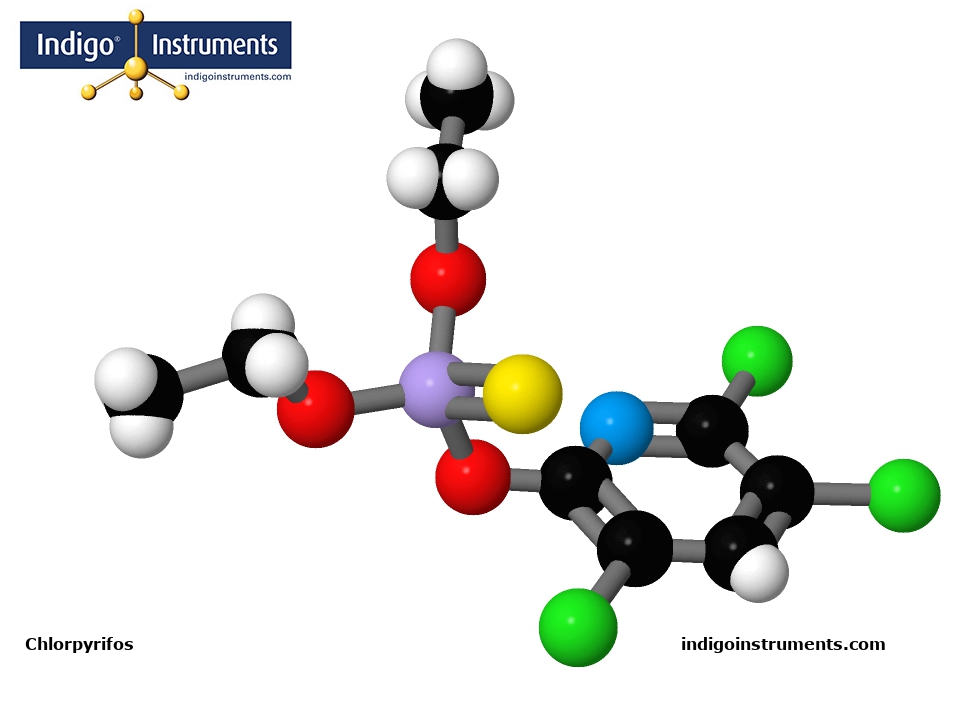

Chlorpyrifos molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60111EAtom, Molymod, green (halogen), 1 hole, 17mm3
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm11
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees3
60201EAtom, Molymod, yellow (sulfur), 2 hole, 105 degrees, 23mm1
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm9
60401EAtom, Molymod, blue (nitrogen), 4 hole, 109.5 deg., 23mm1
60407EAtom, Molymod, purple (phosphorus), 4 hole, 109.5 deg., 23mm1
61012EBond, Molymod, grey (single), 20mm14
61013EBond, Molymod, grey (double/triple), 35mm8
61015EBond, Molymod, opaque, 2mm (for spacefilling models)11
Synonyms
IUPAC Name: diethoxy-sulfanylidene-(3,5,6-trichloropyridin-2-yl)oxy-?5-phosphane , InChI=1S/C9H11Cl3NO3PS/c1-3-14-17(18,15-4-2)16-9-7(11)5-6(10)8(12)13-9/h5H,3-4H2,1-2H3 , InChIKey: SBPBAQFWLVIOKP-UHFFFAOYSA-N , SMILES: CCOP(=S)(OCC)OC1=NC(=C(C=C1Cl)Cl)Cl , CAS 2921-88-2 , diethoxy-sulfanylidene-(3,5,6-trichloropyridin-2-yl)oxyphosphorane , diethoxy-thioxo-[(3,5,6-trichloro-2-pyridyl)oxy]phosphorane , diethoxy-sulfanylidene-(3,5,6-trichloropyridin-2-yl)oxy-phosphorane , O,O-Diethyl O-(3,5,6-trichloro-2-pyridinyl)phosphorothioate , O,O-Diethyl O-(3,5,6-trichloro-2-pyridyl) phsophorothioate , O,O-Diethyl O-3,5,6-trichloro-2-pyridyl phosphorothioate , Bonidel , Brodan , Coroban , Danusban , Dhanusban , Dowco 179 , Durmet , Dursban , Geodinfos , Grofo , Killmaster , Lentrek , Lock-On , Lorsban , OMS-0971 , Phosphorothioic acid, O,O-diethyl O-(3,5,6-trichloro-2-pyridinyl) ester , Phosphorothioic acid, O,O-diethyl O-(3,5,6-trichloro-2-pyridyl) ester , Piridane , Pyrinex , Spannit , Suscon , Tafaban , Terial , Trichlorpyrphos , Zidil , ,
