Cetylpyridinium Chloride Antiseptic Structure

Build a molecular model of the Quat/QAC disinfectant cetylpyridinium chloride with authentic, UK quality Molymod Atoms & Bonds from Indigo.

Cetylpyridinium chloride is a quaternary ammonium compound & is active ingredient for antisepsis in many mouthwashes. Its molecular structure consists of a long hydrophobic hydrocarbon (alkane) chain attached to a positively charged quaternary nitrogen atom that is part of the pyridine ring. Cetylpyridinium, as a quaternary ammonium compound, has a positively charged nitrogen atom that disrupts the negatively charged lipid bilayers of microbial cell membranes causing leakage of intracellular contents.

Note that all the student organic chemistry molecular model sets listed below can build this structure but may need additional parts. Enter this & just about any other quaternary ammonium chloride compound into our 3D Molecular Model Builder to get a complete components list.

Need to test the concentration level of this Quat in your disinfectant spray solution? Try our most popular 0-400ppm QAC QR Test Strips.



A molecular model of Cetylpyridinium Chloride Antiseptic Structure in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
339.9909 C21H38ClN

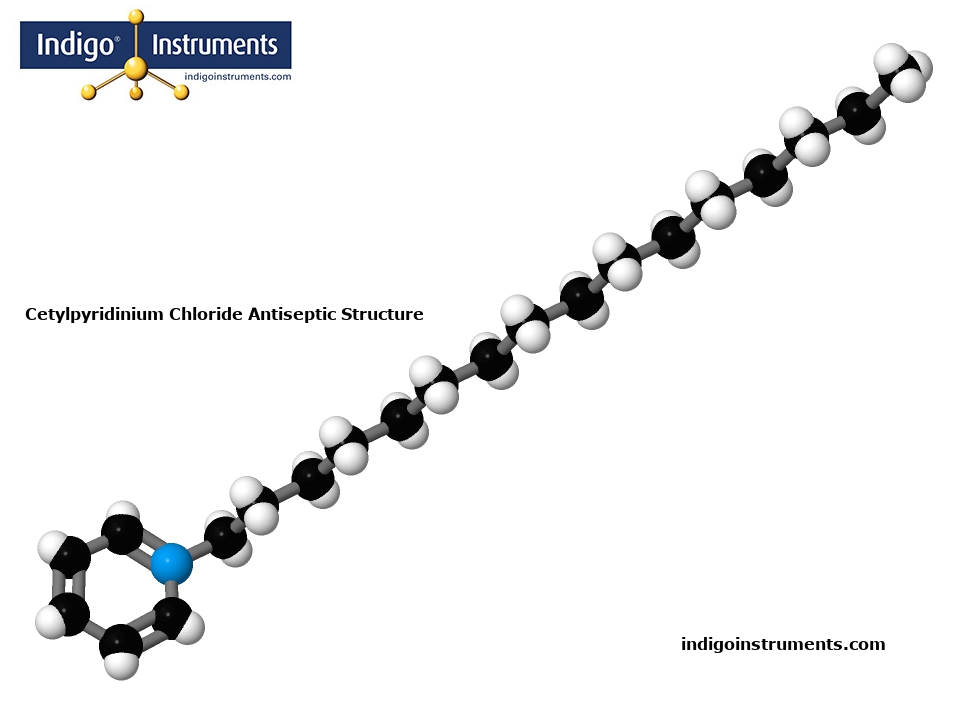

Cetylpyridinium Chloride Antiseptic Structure molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm38
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm21
60401EAtom, Molymod, blue (nitrogen), 4 hole, 109.5 deg., 23mm1
61012EBond, Molymod, grey (single), 20mm19
61013EBond, Molymod, grey (double/triple), 35mm6
61015EBond, Molymod, opaque, 2mm (for spacefilling models)38
Synonyms
IUPAC Name: 1-hexadecylpyridin-1-ium , InChI=1S/C21H38N/c1-2-3-4-5-6-7-8-9-10-11-12-13-14-16-19-22-20-17-15-18-21-22/h15,17-18,20-21H,2-14,16,19H2,1H3/q+1 , InChIKey: NEUSVAOJNUQRTM-UHFFFAOYSA-N , SMILES: CCCCCCCCCCCCCCCC[N+]1=CC=CC=C1 , CAS: 7773-52-6 , 1-cetylpyridin-1-ium chloride , Cepacol , Cetyl-pyridinium chloride , 1-Cetylpyridinium chloride , 1-Hexadecylpyridinium chloride , 1-Palmitylpyridinium chloride , Acetoquat CPC , Aktivex , Ammonyx CPC , Biosept , Ceeprin chloride , Ceepryn chloride , Cepacol chloride , Ceprim , Cetamium , Cetilpiridinio cloruro [DCIT] , Cetyl pyridinium chloride , Cetylpyridini chloridum , Cetylpyridinii chloridum [INN-Latin] , Chlorure de cetylpyridinium [INN-French] , Cloruro de cetilpiridinio [INN-Spanish] , Dobendan , EINECS 204-593-9 , EPA Pesticide Chemical Code 069160 , HSDB 38 , Hexadecylpyridinium chloride , Intexsan CPC , Medilave , Merocet , N-Cetylpyridinium chloride , N-Hexadecylpyridinium chloride , NSC 14864 , Pristacin , Pyridinium, 1-hexadecyl-, chloride , Pyrisept , Quaternario CPC , Swabettes Hoechst , Tserigel , Cetylpyridinium chloride
