Celecoxib (Celebrex)

Construct a 3D molecule model of Celecoxib (Celebrex) utilizing Genuine Molymod Model Parts by Indigo

Celecoxib is classed as a pyrazole (need MB link) with substitutions at the 1, 3 and 5 positions with 4-sulfamoylphenyl, trifluoromethyl and p-tolyl groups respectively. It acts as a cyclooxygenase-2 inhibitor & non-narcotic painkiller in the treatment of arthritis & other types of inflammation.

A molecular model of Celecoxib in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
381.3717 C17H14F3N3O2S

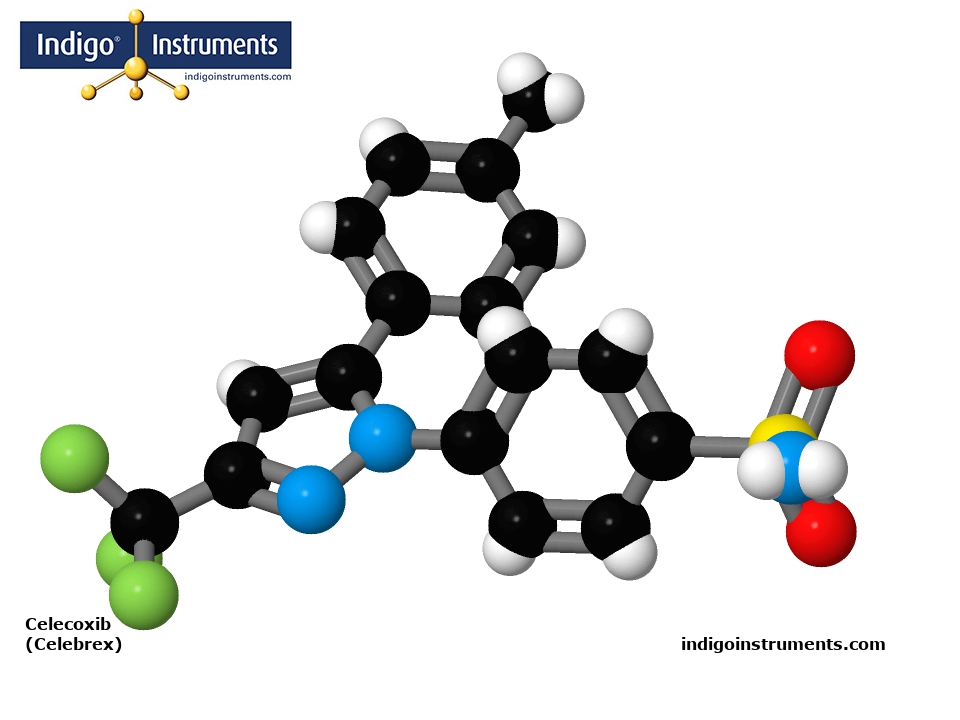

Celecoxib (Celebrex) molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60103EAtom, Molymod, red (oxygen), 1 hole, 20mm2
60116EAtom, Molymod, light green (halogen), 1 hole, 17mm3
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm14
60300EAtom, Molymod, blue (nitrogen), 3 hole, 107 degrees, 23mm1
60311EAtom, Molymod, blue (nitrogen), 3 hole, 120 degrees, 23mm1
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm17
60401EAtom, Molymod, blue (nitrogen), 4 hole, 109.5 deg., 23mm1
60403EAtom, Molymod, yellow (sulfur), 4 hole, 109.5 degrees, 23mm1
61012EBond, Molymod, grey (single), 20mm20
61013EBond, Molymod, grey (double/triple), 35mm16
61015EBond, Molymod, opaque, 2mm (for spacefilling models)14
Synonyms
(IUPAC Name) 4-[5-(4-methylphenyl)-3-(trifluoromethyl)pyrazol-1-yl]benzenesulfonamide , (InChI) 1S/C17H14F3N3O2S/c1-11-2-4-12(5-3-11)15-10-16(17(18,19)20)22-23(15)13-6-8-14(9-7-13)26(21,24)25/h2-10H,1H3,(H2,21,24,25) , (InChIKey)RZEKVGVHFLEQIL-UHFFFAOYSA-N , (SMILES)CC1=CC=C(C=C1)C2=CC(=NN2C3=CC=C(C=C3)S(=O)(=O)N)C(F)(F)F , (CAS) 169590-42-5 , Celocoxib , Onsenal , Celecox , Solexa ,
