Tetracycline

Put together a 3D molecule structure model of the antibiotic Tetracycline (Sumycin) utilizing Genuine Molymod Components by Indigo

Tetracycline is a broad spectrum antibiotic which gets its name from the four linearly connected six membered rings in its structure. Initially it was effective against a broad range of both Gram positive & Gram negative bacteria but due to increased resistance, now has a much more limited area of application.

A molecular model of Tetracycline in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
444.4402 C22H24N2O8

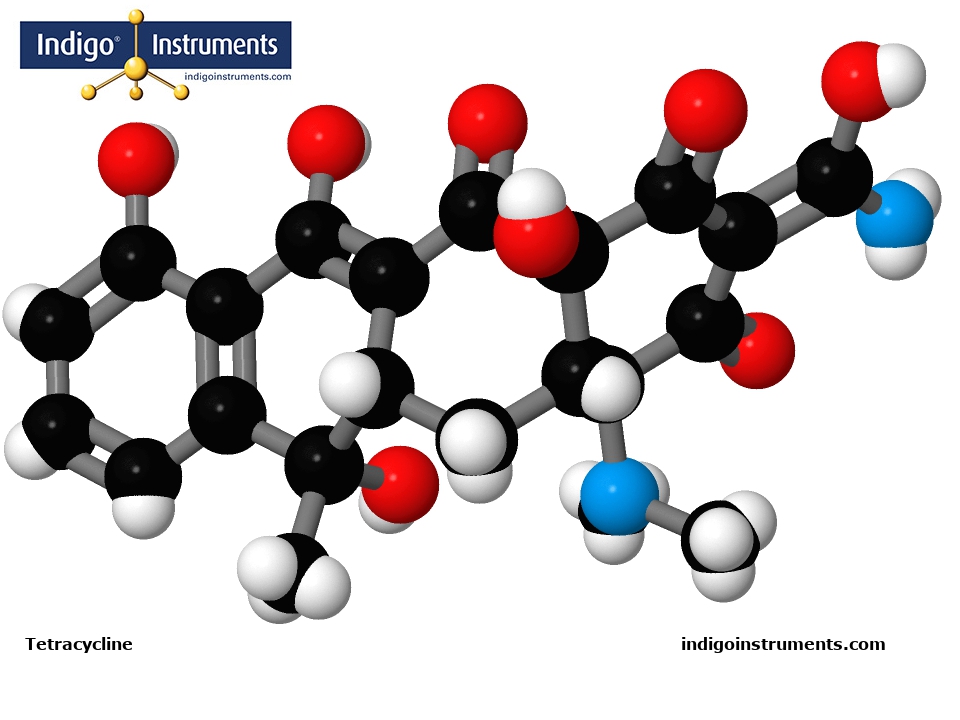

Tetracycline molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm24
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees8
60300EAtom, Molymod, blue (nitrogen), 3 hole, 107 degrees, 23mm1
60311EAtom, Molymod, blue (nitrogen), 3 hole, 120 degrees, 23mm1
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm22
61012EBond, Molymod, grey (single), 20mm27
61013EBond, Molymod, grey (double/triple), 35mm16
61015EBond, Molymod, opaque, 2mm (for spacefilling models)24
Synonyms
IUPAC Name: (4S,4aS,5aS,6S,12aR)-4-(dimethylamino)-1,6,10,11,12a-pentahydroxy-6-methyl-3,12-dioxo-4,4a,5,5a-tetrahydrotetracene-2-carboxamide , InChI: 1S/C22H24N2O8/c1-21(31)8-5-4-6-11(25)12(8)16(26)13-9(21)7-10-15(24(2)3)17(27)14(20(23)30)19(29)22(10,32)18(13)28/h4-6,9-10,15,25-26,29,31-32H,7H2,1-3H3,(H2,23,30)/t9-,10-,15-,21+,22-/m0/s1 , InChIKey: NWXMGUDVXFXRIG-WESIUVDSSA-N , SMILES: CC1(C2CC3C(C(=O)C(=C(C3(C(=O)C2=C(C4=C1C=CC=C4O)O)O)O)C(=O)N)N(C)C)O , CAS: 60-54-8 ,
