Steviol (Stevia)

Make a molecular structure model of Steviol (Stevia) glycosides out of Genuine Molymod Atoms & Bonds by Indigo Instruments

Steviol, aka Stevia, is an important diterpene that was isolated from the Stevia rebaudiana plant in 1931. The Steviol glycoside, or stevioside, is described structurally as a four-ring diterpene. It is used in the food industry as a natural low-calorie sweetener. Some people prefer it in place of synthetic sweeteners such as saccharin, aspartame, and sucralose.

A molecular model of Steviol in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
318.4552 C20H30O3

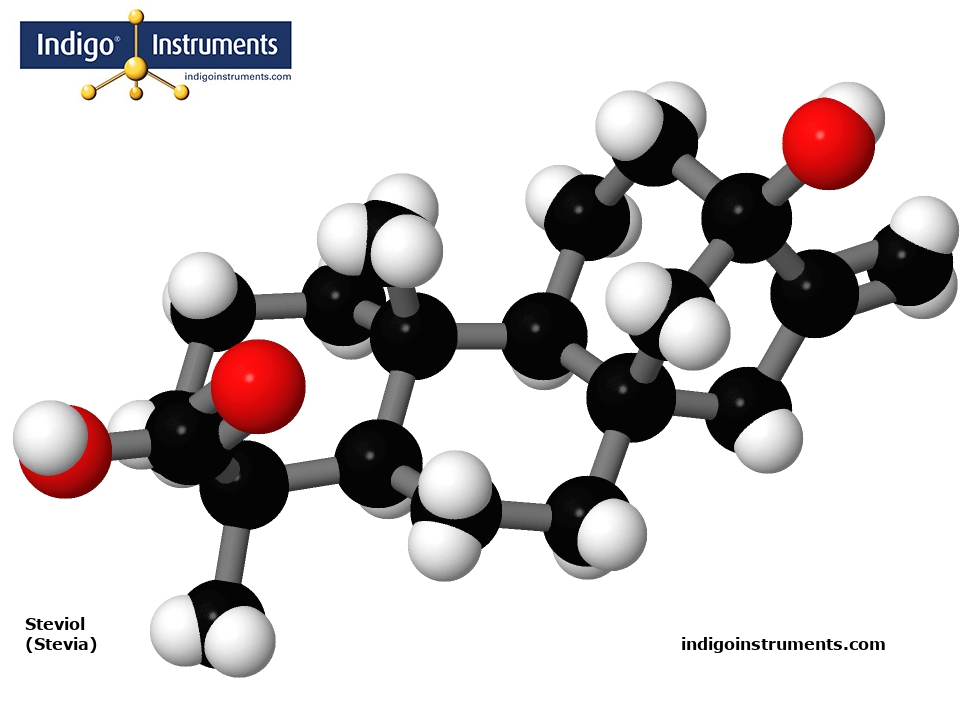

Steviol (Stevia) molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm30
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees3
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm20
61012EBond, Molymod, grey (single), 20mm24
61013EBond, Molymod, grey (double/triple), 35mm4
61015EBond, Molymod, opaque, 2mm (for spacefilling models)30
Synonyms
IUPAC Name: (1R,4S,5R,9S,10R,13S)-13-hydroxy-5,9-dimethyl-14-methylidenetetracyclo[11.2.1.01,10.04,9]hexadecane-5-carboxylic acid , InChI=1S/C20H30O3/c1-13-11-19-9-5-14-17(2,7-4-8-18(14,3)16(21)22)15(19)6-10-20(13,23)12-19/h14-15,23H,1,4-12H2,2-3H3,(H,21,22)/t14-,15-,17+,18+,19+,20-/m0/s1 , InChIKey: QFVOYBUQQBFCRH-VQSWZGCSSA-N , SMILES: CC12CCCC(C1CCC34C2CCC(C3)(C(=C)C4)O)(C)C(=O)O , CAS: 471-80-7 , , ,
