Rhodamine

Build a 3D molecule structure model of Rhodamine utilizing Authentic Molymod Model Parts by Indigo Instruments

Rhodamines are xanthene derivatives characterized by their tricyclic ring base structure. Their fluorescent properties make them useful as tracer dyes in various industrial and laboratory applications. Rhodamine 6G, for example, is important in spectroscopy where it is used in tunable dye lasers. In continuous wave mode it can be tuned from 635 nm (orangish-red) to 560 nm (greenish-yellow) or when gated, produce pulses as short as 16 femtoseconds.

Other derivatives include Rhodamine 123 which is used in fluorescence microscopy, flow cytometry, and ELISA (Enzyme Linked Immunosorbent Assay). Another derivative, Rhodamine B can help visualize water flow patterns and has biological uses as a light microscopy stain and a biomarker for rabies vaccines.

A molecular model of Rhodamine in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
479.0175 C28H31ClN2O3

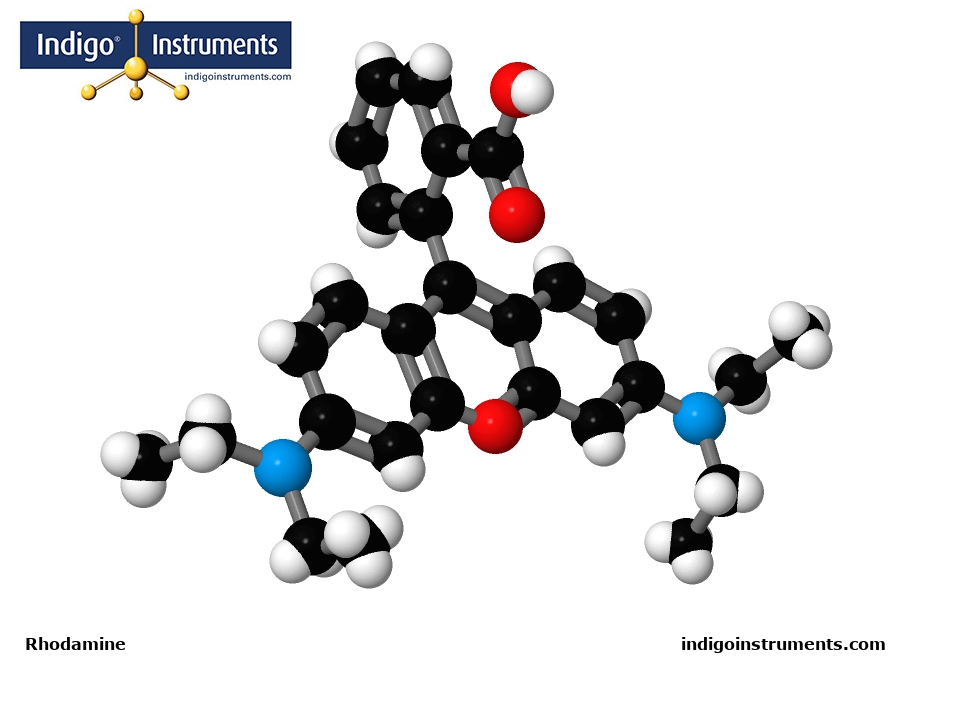

Rhodamine molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm31
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees3
60311EAtom, Molymod, blue (nitrogen), 3 hole, 120 degrees, 23mm1
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm28
60401EAtom, Molymod, blue (nitrogen), 4 hole, 109.5 deg., 23mm1
61012EBond, Molymod, grey (single), 20mm25
61013EBond, Molymod, grey (double/triple), 35mm22
61015EBond, Molymod, opaque, 2mm (for spacefilling models)31
Synonyms
IUPAC Name: [9-(2-carboxyphenyl)-6-(diethylamino)xanthen-3-ylidene]-diethylazanium , InChI=1S/C28H30N2O3/c1-5-29(6-2)19-13-15-23-25(17-19)33-26-18-20(30(7-3)8-4)14-16-24(26)27(23)21-11-9-10-12-22(21)28(31)32/h9-18H,5-8H2,1-4H3/p+1 , InChIKey: CVAVMIODJQHEEH-UHFFFAOYSA-O , SMILES: CCN(CC)C1=CC2=C(C=C1)C(=C3C=CC(=[N+](CC)CC)C=C3O2)C4=CC=CC=C4C(=O)O , CAS: 64381-98-2 , [9-(2-carboxyphenyl)-6-diethylaminoxanthen-3-ylidene]-diethylazanium chloride , [9-(2-carboxyphenyl)-6-diethylamino-xanthen-3-ylidene]-diethyl-ammonium chloride , [9-(2-carboxyphenyl)-6-diethylamino-3-xanthenylidene]-diethylammonium chloride , [9-(2-carboxyphenyl)-6-diethylamino-xanthen-3-ylidene]-diethyl-azanium chloride ,
