Paraxanthine

Create a 3D molecule structure model of Paraxanthine out of Authentic Molymod Atoms & Bonds by Indigo Instruments

Paraxanthine's bicyclic chemical structure is a dimethylxanthine which is a purine derivative (containing 5 & 6 member fused rings) with 2 ketone groups & 2 methyl groups. It belongs to a general groups of psychoactive compounds called methylxanthines that includes caffeine, paraxanthine, theobromine, and theophylline. The body produces it as a caffeine metabolite where it acts as a central nervous system stimulant. Other metabolic by-products include uric acid and uracil derivatives.

A molecular model of Paraxanthine in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
180.1658 C7H8N4O2

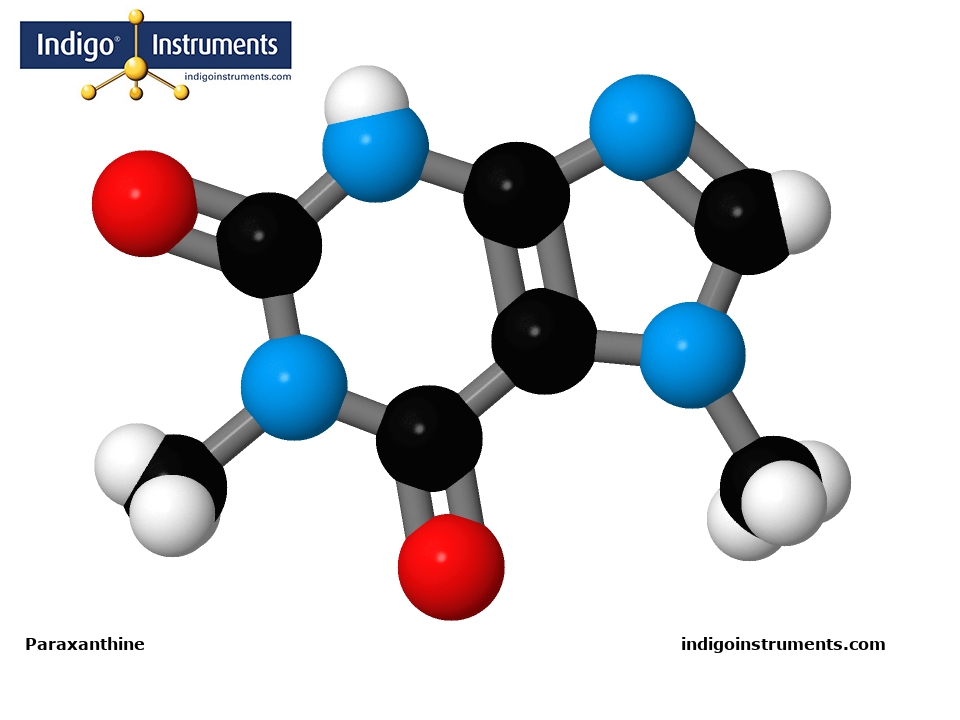

Paraxanthine molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm8
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees2
60311EAtom, Molymod, blue (nitrogen), 3 hole, 120 degrees, 23mm3
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm7
60401EAtom, Molymod, blue (nitrogen), 4 hole, 109.5 deg., 23mm1
61012EBond, Molymod, grey (single), 20mm10
61013EBond, Molymod, grey (double/triple), 35mm8
61015EBond, Molymod, opaque, 2mm (for spacefilling models)8
Synonyms
IUPAC Name: 1,7-dimethyl-3H-purine-2,6-dione , InChI=1S/C7H8N4O2/c1-10-3-8-5-4(10)6(12)11(2)7(13)9-5/h3H,1-2H3,(H,9,13) , InChIKey: QUNWUDVFRNGTCO-UHFFFAOYSA-N , SMILES: CN1C=NC2=C1C(=O)N(C(=O)N2)C , CAS: 611-59-6 , 1,7-Dimethylxanthine , 1H-Purine-2,6-dione, 3,7-dihydro-1,7-dimethyl- (9CI) , 3,7-Dihydro-1,7-dimethyl-1H-purine-2,6-dione ,
