Palmitoleic Acid

Fabricate a 3D molecule structure model of Palmitoleic Acid utilizing Authentic Molymod Model Parts by indigoinstruments.com

Palmitoleic acid is an omega-7 (ω-7) monounsaturated fatty acid. Its molecular structure consists of 16 carbon with single covalent bonds except for a cis double bond at the 9th carbon from the omega (methyl) end. It plays an important role in human metabolism & can be biosynthesized from palmitic acid. It is also available from various dietary sources including macadamia nuts, sea buckthorn and fish oils. You can build related fatty acids molecular models to compare their chemical structures.

A molecular model of Palmitoleic Acid in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
254.4118 C16H30O2

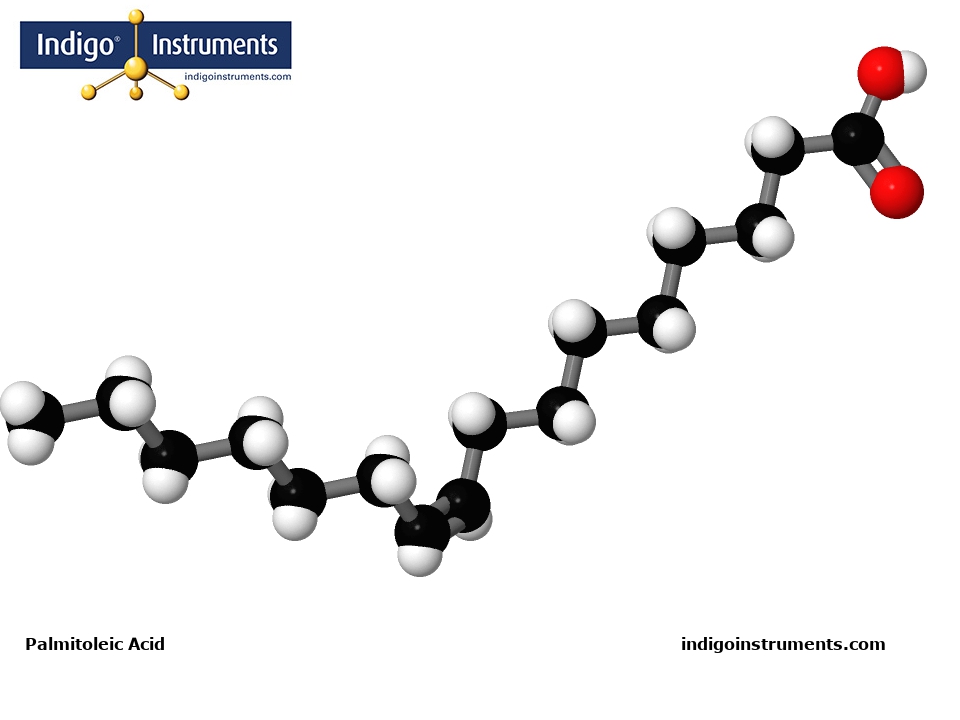

Palmitoleic Acid molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm30
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees2
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm16
61012EBond, Molymod, grey (single), 20mm15
61013EBond, Molymod, grey (double/triple), 35mm4
61015EBond, Molymod, opaque, 2mm (for spacefilling models)30
Synonyms
  • IUPAC Name: (Z)-hexadec-9-enoic acid
  • InChI=1S/C16H30O2/c1-2-3-4-5-6-7-8-9-10-11-12-13-14-15-16(17)18/h7-8H,2-6,9-15H2,1H3,(H,17,18)/b8-7-
  • InChIKey: SECPZKHBENQXJG-FPLPWBNLSA-N
  • Canonical SMILES: CCCCCCC=CCCCCCCCC(=O)O
  • CAS: 373-49-9
  • 9Z-hexadecenoic acid
  • cis-9-palmitoleic acid
  • (9Z)-Hexadecenoic acid
