Oleanic Acid

Assemble a molecule model of Oleanic Acid out of Genuine Molymod Atoms & Bonds by Indigo Instruments

Oleanolic acid is a type of saponin & with a pentacyclic oleanane or triterpenoid chemical structure. It occurs naturally in over 120 species of plants, including the cuticle waxes found on the epidermis of olive leaves (Olea europaea).

A molecular model of Oleanic Acid in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
456.7074 C30H48O3

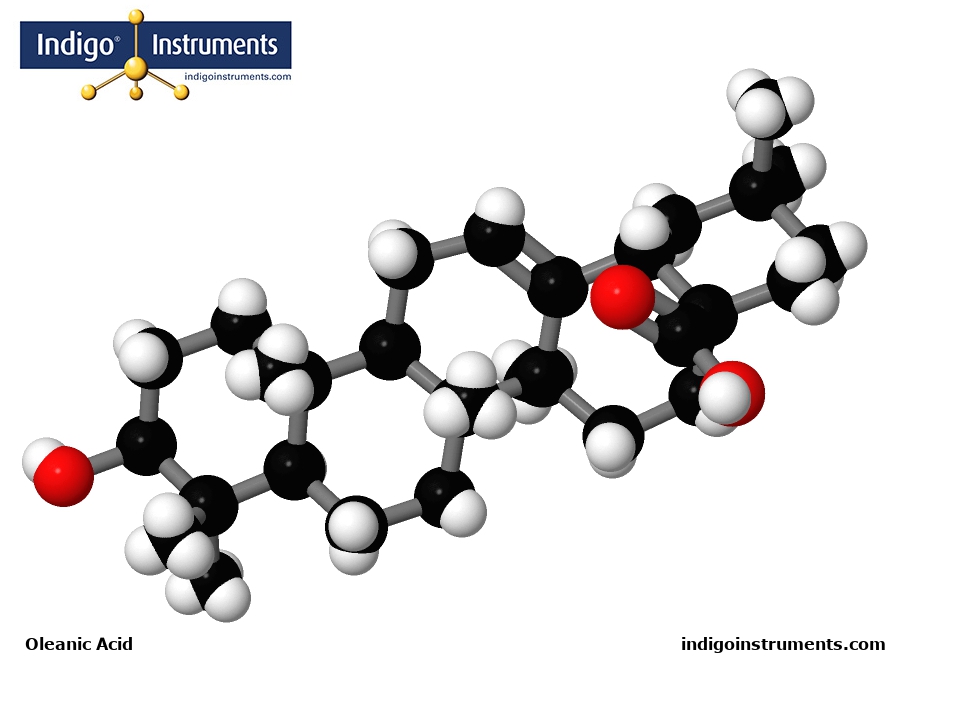

Oleanic Acid molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm48
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees3
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm28
60611EAtom, Molymod, black (carbon), 6 hole, octahedral, 23mm2
61012EBond, Molymod, grey (single), 20mm35
61013EBond, Molymod, grey (double/triple), 35mm4
61015EBond, Molymod, opaque, 2mm (for spacefilling models)48
Synonyms
IUPAC Name: (4aS,6aR,6aS,6bR,8aR,10S,12aR,14bS)-10-hydroxy-2,2,6a,6b,9,9,12a-heptamethyl-1,3,4,5,6,6a,7,8,8a,10,11,12,13,14b-tetradecahydropicene-4a-carboxylic acid , InChI=1S/C30H48O3/c1-25(2)14-16-30(24(32)33)17-15-28(6)19(20(30)18-25)8-9-22-27(5)12-11-23(31)26(3,4)21(27)10-13-29(22,28)7/h8,20-InChIKey: MIJYXULNPSFWEK-GTOFXWBISA-N , SMILES: CC1(CCC2(CCC3(C(=CCC4C3(CCC5C4(CCC(C5(C)C)O)C)C)C2C1)C)C(=O)O)C , CAS: 508-02-1 , ,
