Melatonin

Build a molecular structure model of the neurotransmitter/hormone Melatonin with Authentic Molymod Atoms & Bonds

Melatonin is an important hormone across the biological kingdoms. In humans & other animals it is synthesized from the amino acid tryptophan. It is important in circadian (biological) rhythms including sleep, reproduction & other daily, monthly or annual cycles. It is one of a few very important naturally occuring indoleamines.

A molecular model of Melatonin in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
232.2816 C13H16N2O2

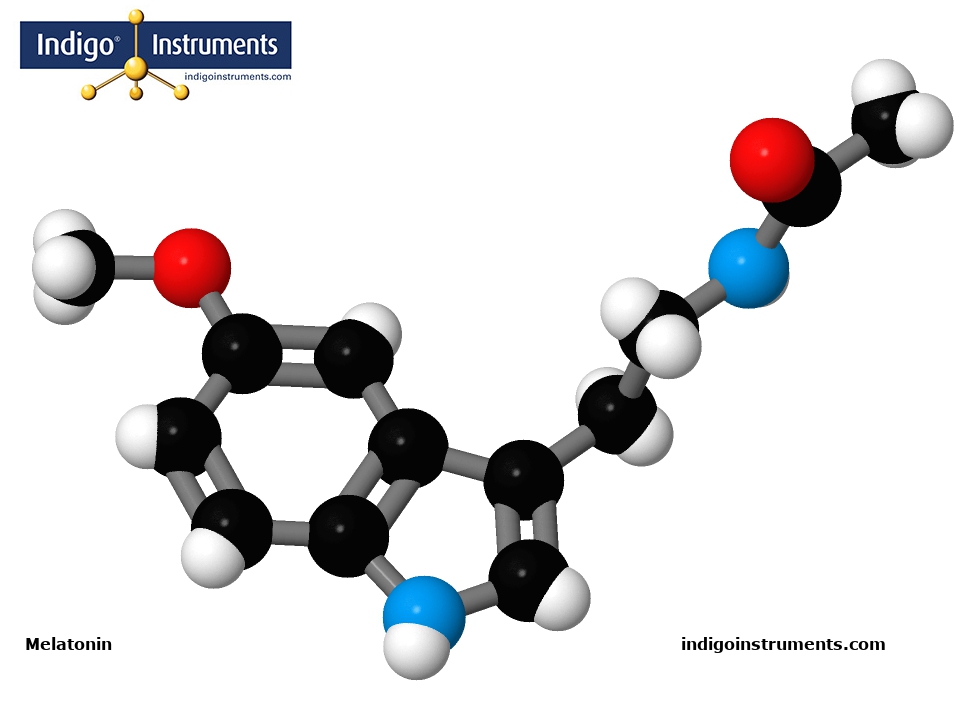

Melatonin molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm16
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees2
60311EAtom, Molymod, blue (nitrogen), 3 hole, 120 degrees, 23mm2
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm13
61012EBond, Molymod, grey (single), 20mm13
61013EBond, Molymod, grey (double/triple), 35mm10
61015EBond, Molymod, opaque, 2mm (for spacefilling models)16
Synonyms
IUPAC Name: N-[2-(5-methoxy-1H-indol-3-yl)ethyl]acetamide , InChI=1S/C13H16N2O2/c1-9(16)14-6-5-10-8-15-13-4-3-11(17-2)7-12(10)13/h3-4,7-8,15H,5-6H2,1-2H3,(H,14,16) , InChIKey: DRLFMBDRBRZALE-UHFFFAOYSA-N , SMILES: CC(=O)NCCC1=CNC2=C1C=C(C=C2)OC , CAS 73-31-4 , Circadin , Melatol , Melovine ,
