Lanreotide (Somatuline)

Construct a molecule structure model of Lanreotide (Somatuline) utilizing Authentic Molymod Atoms & Bonds by Indigo Instruments

Lanreotide is a synthetic cyclic polypeptide consisting of 8 amino acids with its sequence represented as: "H-D-2-Nal-Cys-Tyr-D-Trp-Lys-Val-Cys-Thr-Cys-Thr-OH". "H" represents the amino group NH2 & "OH" the carboxyl group (COOH). You can build standard amino acids with our amino acid kit and augment using our 3D Molecular Model Builder for D-tryptophan (D-Trp) & 2-naphthylalanine (2-Nal).

Lanreotide is an analog of the hormone somatostatin with a number of medical uses. The principal mechanism of action for lanreotide as a medication is inhibition of human growth hormone (HGH) by binding to somatostatin receptors in the pituitary gland. This mode of action can treat acromegaly, where the hands, feet, mandible, nose & forehead, continue to grow even after the growth plates have closed. It can also limit soft tissues such as the tongue & organs.

A molecular model of Lanreotide in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
1096.3268 C54H69N11O10S2

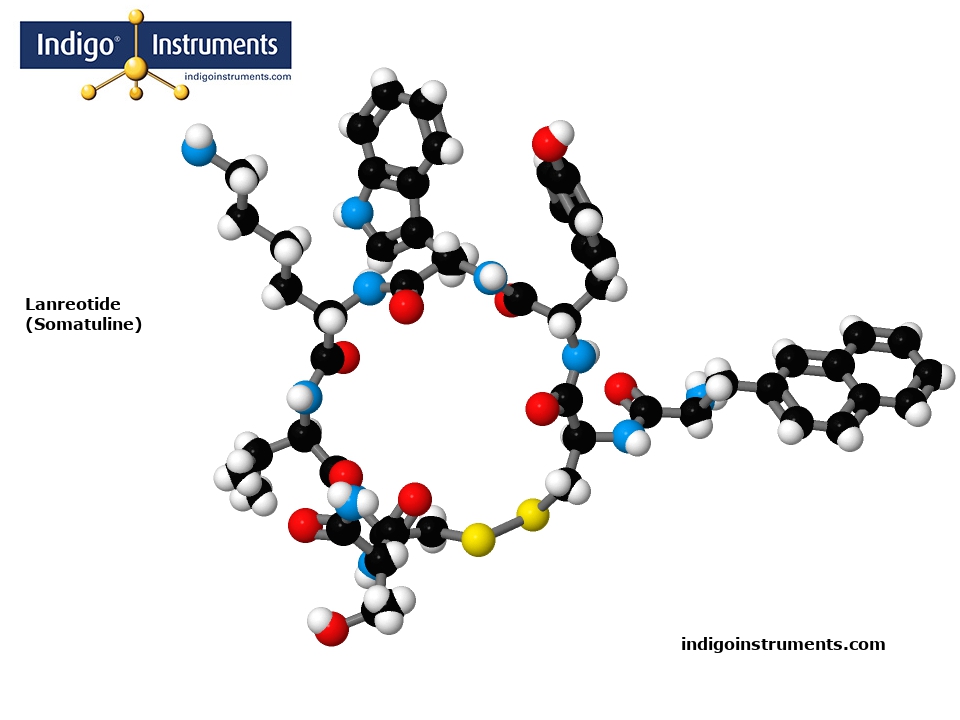

Lanreotide (Somatuline) molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm69
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees10
60201EAtom, Molymod, yellow (sulfur), 2 hole, 105 degrees, 23mm2
60300EAtom, Molymod, blue (nitrogen), 3 hole, 107 degrees, 23mm2
60311EAtom, Molymod, blue (nitrogen), 3 hole, 120 degrees, 23mm9
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm54
61012EBond, Molymod, grey (single), 20mm62
61013EBond, Molymod, grey (double/triple), 35mm40
61015EBond, Molymod, opaque, 2mm (for spacefilling models)69
Synonyms
IUPAC Name: (4R,7S,10S,13R,16S,19R)-10-(4-aminobutyl)-N-[(2S,3R)-1-amino-3-hydroxy-1-oxobutan-2-yl]-19-[[(2R)-2-amino-3-naphthalen-2-ylpropanoyl]amino]-16-[(4-hydroxyphenyl)methyl]-13-(1H-indol-3-ylmethyl)-6,9,12,15,18-pentaoxo-7-propan-2-yl-1,2-dithia-5,8,11,14,17-pentazacycloicosane-4-carboxamide , InChI=1S/C54H69N11O10S2/c1-29(2)45-54(75)63-44(53(74)65-46(30(3)66)47(57)68)28-77-76-27-43(62-48(69)38(56)23-32-15-18-33-10-4-5-11-34(33)22-32)52(73)60-41(24-31-16-19-36(67)20-17-31)50(71)61-42(25-35-26-58-39-13-7-6-12-37(35)39)51(72)59-40(49(70)64-45)14-8-9-21-55/h4-7,10-13,15-20,22,26,29-30,38,40-46,58,66-67H,8-9,14,21,23-25,27-28,55-56H2,1-3H3,(H2,57,68)(H,59,72)(H,60,73)(H,61,71)(H,62,69)(H,63,75)3.1.3 InChIKey: PUDHBTGHUJUUFI-SCTWWAJVSA-N , SMILES: CC(C)C1C(=O)NC(CSSCC(C(=O)NC(C(=O)NC(C(=O)NC(C(=O)N1)CCCCN)CC2=CNC3=CC=CC=C32)CC4=CC=C(C=C4)O)NC(=O)C(CC5=CC6=CC=CC=C6C=C5)N)C(=O)NC(C(C)O)C(=O)N , CAS: 108736-35-2 , Autogel , Somatulin
