Isocitrate

Fabricate a molecule structure model of Isocitrate using Genuine Molymod Atoms & Bonds by indigoinstruments.com

Isocitrate has the chemical structure of a carboxylic acid. It is an intermediate in the TCA/citric acid/Krebs cycle, an important biochemical pathway in cell respiration/metabolism.

The TCA cycle starts with citrate forming from oxaloacetate and acetyl-CoA & is then converted to isocitrate. Isocitrate is catalyzed to form alpha-ketoglutarate (& a molecule of NADH) & then to succinyl-CoA (& another molecule of NADH) through a series of reactions. The last stages see the conversion of succinyl-CoA to succinate, guanosine triphosphate (GTP) & finally ATP.

A molecular model of Isocitrate in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
189.1013 C6H5O7

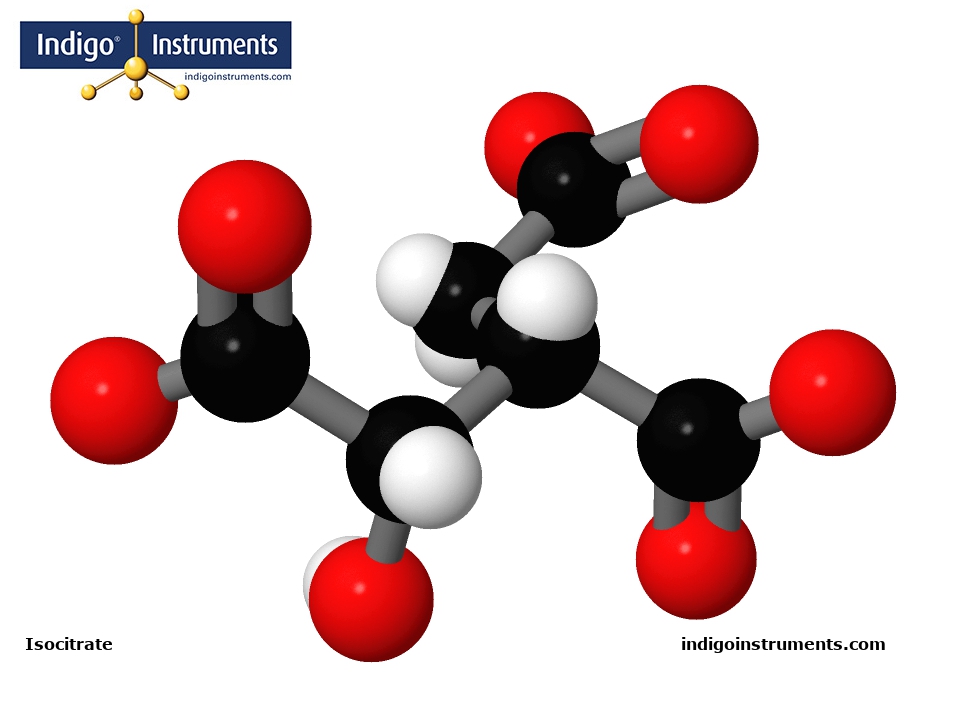

Isocitrate molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm8
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees7
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm6
61012EBond, Molymod, grey (single), 20mm9
61013EBond, Molymod, grey (double/triple), 35mm6
61015EBond, Molymod, opaque, 2mm (for spacefilling models)8
Synonyms
IUPAC name: 1-Hydroxypropane-1,2,3-tricarboxylic acid , InChI=1S/C6H8O7/c7-3(8)1-2(5(10)11)4(9)6(12)13/h2,4,9H,1H2,(H,7,8)(H,10,11)(H,12,13) check , InchiKey: ODBLHEXUDAPZAU-UHFFFAOYSA-N , Smiles: O=C(O)C(CC(=O)O)C(O)C(=O)O , CAS: 320-77-4
