Gelsemine

Build a 3D chemical structure model of Gelsemine out of Authentic Molymod Atoms & Bonds by Indigo.

A molecular model of Gelsemine in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
322.406 C20H22N2O2

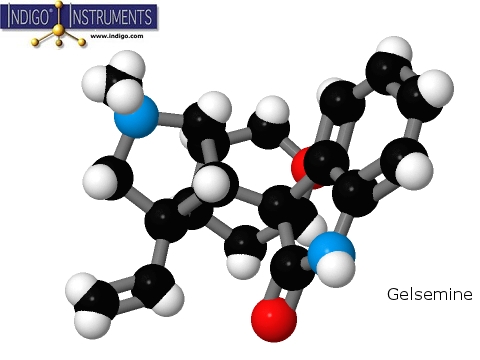

Gelsemine molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm22
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees2
60300EAtom, Molymod, blue (nitrogen), 3 hole, 107 degrees, 23mm1
60311EAtom, Molymod, blue (nitrogen), 3 hole, 120 degrees, 23mm1
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm20
61012EBond, Molymod, grey (single), 20mm24
61013EBond, Molymod, grey (double/triple), 35mm10
61015EBond, Molymod, opaque, 2mm (for spacefilling models)22
Synonyms
  • 509-15-9
  • Prestwick0_000662
  • Prestwick_1052
  • Prestwick1_000662
  • (3R-(3alpha,4abeta,5alpha,8alpha,8abeta,9S*,10S*))-5-ethenyl-3,4,4a,5,6,7,8,8a-octahydro-7-methylspiro(3,5,8-ethanylylidene-1H-pyrano(3,4-c)pyridine-10,3'-(3H)indol)-2'(1',H)-one
  • 4-27-00-07526 (Beilstein Handbook Reference)
  • BRN 5406576
  • EINECS 208-095-2
  • Gelsemin
  • Gelsemine
  • NSC 21729
  • Spiro(3,5,8-ethanylylidene-1H-pyrano(3,4-c)pyridine-10,3'-(3H)indol)-2'(1'H)-one, 5-ethenyl-3,4,4a,5,6,7,8,8a-octahydro-7-methyl-, (3R-(3alpha,4abeta,5alpha,8alpha,8abeta,9S*,10S*))-
  • Prestwick2_000662
  • SPBio_002644
  • HSDB 3488
