Enterobactin (Enterochelin)

Form a 3D molecular structure model of Enterobactin (Enterochelin) from Authentic Molymod Atoms & Bonds by indigoinstruments.com

Enterobactin's molecular structure is a siderophore consisting of three catechols linked by peptide bonds. It is produced by certain gram-negative bacteria, including Escherichia coli, Salmonella typhimurium, Klebsiella pneumoniae and Pseudomonas sp. These bacteria use it to chelate iron before uptake. Enterobactin has been studied extensively regarding fundamental coordination chemistry of siderophores.

A molecular model of Enterobactin in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
669.5544 C30H27N3O15

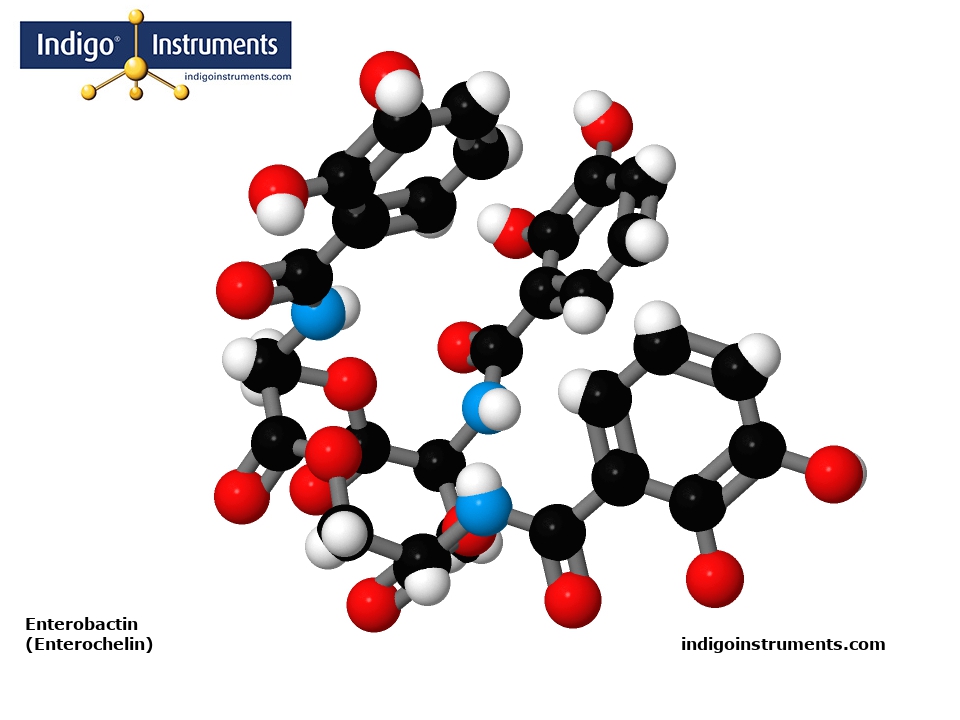

Enterobactin (Enterochelin) molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm27
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees15
60311EAtom, Molymod, blue (nitrogen), 3 hole, 120 degrees, 23mm3
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm30
61012EBond, Molymod, grey (single), 20mm36
61013EBond, Molymod, grey (double/triple), 35mm30
61015EBond, Molymod, opaque, 2mm (for spacefilling models)27
Synonyms
IUPAC Name: N-[(3S,7S,11S)-7,11-bis[(2,3-dihydroxybenzoyl)amino]-2,6,10-trioxo-1,5,9-trioxacyclododec-3-yl]-2,3-dihydroxybenzamide , InChI=1S/C30H27N3O15/c34-19-7-1-4-13(22(19)37)25(40)31-16-10-46-29(44)18(33-27(42)15-6-3-9-21(36)24(15)39)12-48-30(45)17(11-47-28(16)43)32-26(41)14-5-2-8-20(35)23(14)38/h1-9,16-18,34-39H,10-12H2,(H,31,40)(H,32,41)(H,33,42)/t16-,17-,18-/m0/s1 , InChIKey: SERBHKJMVBATSJ-BZSNNMDCSA-N , SMILES: C1C(C(=O)OCC(C(=O)OCC(C(=O)O1)NC(=O)C2=C(C(=CC=C2)O)O)NC(=O)C3=C(C(=CC=C3)O)O)NC(=O)C4=C(C(=CC=C4)O)O , CAS: 28384-96-5 ,
