EDTA

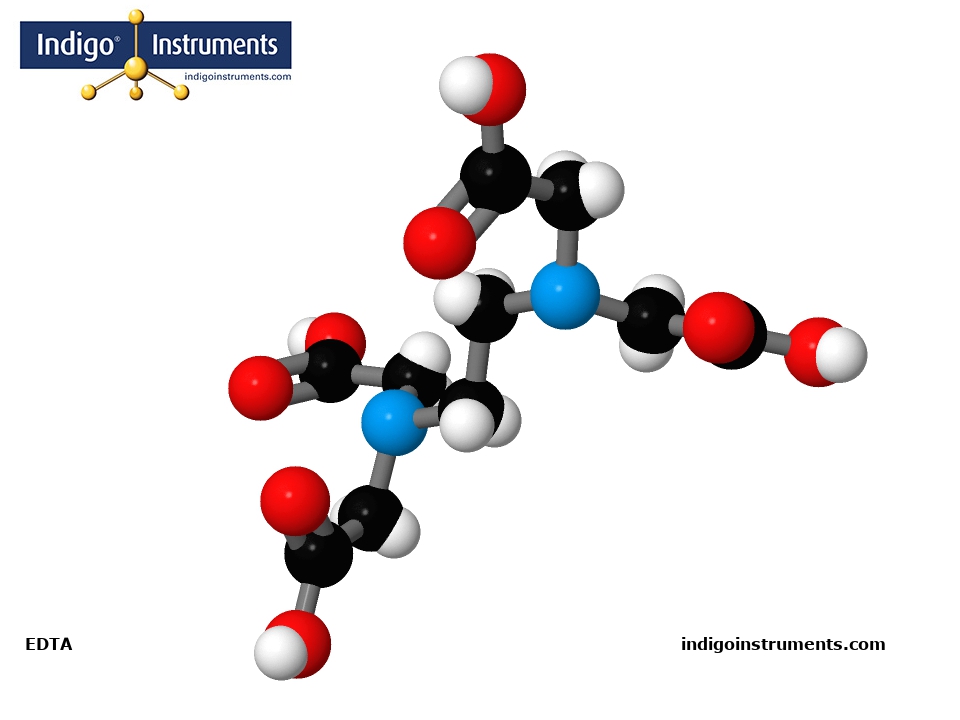

Fabricate a 3D molecule model of the chelating agent EDTA (Ethylenediaminetetraacetic acid) using Authentic Molymod Model Parts by Indigo.

EDTA (Ethylenediaminetetraacetic acid) has a chemical structure described as an amino-polycarboxylic acid. It is an important ligand & chelating material commonly used to remove limescale caused by minerals such as calcium carbonate and forms complexes that precipitate out of water onto metal pipes, glass & other surfaces. It also forms water-soluble complexes even at neutral pH to deliver iron ions under conditions where iron oxides are insoluble.

Most students will utilize EDTA in their introductory inorganic labs and learn about it through point group theory as it is the ligand commonly used to show D3 point group.  EDTA is a common bidentate ligand.

A molecular model of EDTA in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
292.245 C10H16N2O8

EDTA molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm16
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees8
60300EAtom, Molymod, blue (nitrogen), 3 hole, 107 degrees, 23mm2
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm10
61012EBond, Molymod, grey (single), 20mm15
61013EBond, Molymod, grey (double/triple), 35mm8
61015EBond, Molymod, opaque, 2mm (for spacefilling models)16
Synonyms
IUPAC Name: 2-[2-[bis(carboxymethyl)amino]ethyl-(carboxymethyl)amino]acetic acid , InChI=1S/C10H16N2O8/c13-7(14)3-11(4-8(15)16)1-2-12(5-9(17)18)6-10(19)20/h1-6H2,(H,13,14)(H,15,16)(H,17,18)1.3 InChIKey: KCXVZYZYPLLWCC-UHFFFAOYSA-N , SMILES: C(CN(CC(=O)O)CC(=O)O)N(CC(=O)O)CC(=O)O , CAS: 60-00-4 , Ethylenediaminetetraacetic acid , Chelating agents , Edetic acid ,
