Beta Damascenone

Make a 3D molecule model of the essential oil Beta Damascenone using Genuine Molymod Atoms & Bonds by Indigo Instruments

The scent of roses is as a complex as it is pleasant & unmistakable as it consists of many different chemical compounds all of which affect how each of us perceive it. For the sake of simplicity, we have designed to focus on just one, beta damascenone, a component of many essential oils and belongs to a family of related compounds called rose ketones.

For a more detailed explanation & the history of this check Wikipedia for Rose Oil.

A molecular model of Beta Damascenone in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
190.2846 C13H18O

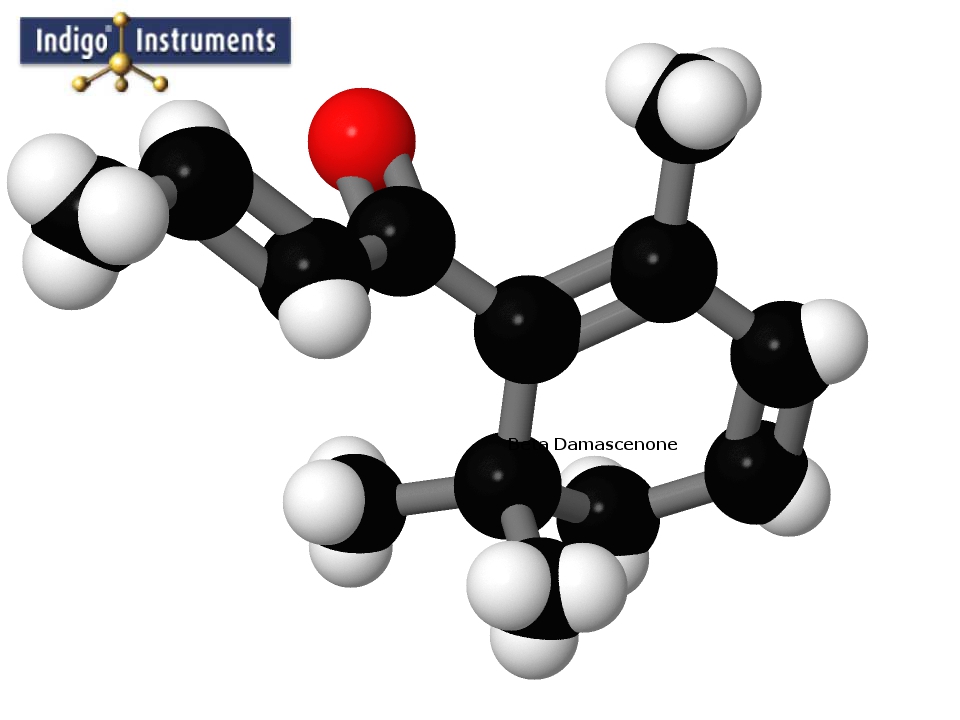

Beta Damascenone molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm18
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees1
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm13
61012EBond, Molymod, grey (single), 20mm10
61013EBond, Molymod, grey (double/triple), 35mm8
61015EBond, Molymod, opaque, 2mm (for spacefilling models)18
Synonyms
(E)-1-(2,6,6-trimethyl-1-cyclohexa-1,3-dienyl)but-2-en-1-one , 23726-93-4 , 36649-63-5 , 23696-85-7 , (E)-1-(2,6,6-Trimethyl-1,3-cyclohexadien-1-yl)-2-buten-1-one , 2-Buten-1-one, 1-(2,6,6-trimethyl-1,3-cyclohexadien-1-yl)-, (2E)- , .beta.-Damascenone , 2-Buten-1-one, 1-(2,6,6-trimethyl-1,3-cyclohexadien-1-yl)-, (E) , 2-Buten-1-one, 1-(2,6,6-trimethyl-1,3-cyclohexadien-1-yl)-, (E)- , 1-(2,6,6-Trimethyl-1,3-cyclohexadien-1-yl)-2-buten-1-one , 2-BUTEN-1-ONE, 1-(2,6,6-TRIMETHYL-1,3-CYCLOHEXADIEN-1-YL)- , 4-(2,6,6-Trimethylcyclohexa-1,3-dienyl)but-2-en-4-one , Damascenone , Damascenone (natural) , EINECS 245-833-2 , FEMA No. 3420 , beta-Damascenone , (2E)-1-(2,6,6-Trimethyl-1,3-cyclohexadien-1-yl)-2-buten-1-one , EINECS 245-844-2 , W342017_ALDRICH
