Bendamustine

Assemble a chemical structure model of Bendamustine from Authentic Molymod Components by Indigo Instruments

Bendamustine is a nitrogen mustard that has a chemical structure of a bifunctional mechlorethamine/chlormethine derivative consisting of a double chlorine head (which hydrolyzes as the main reaction pathway) and a carboxylic acid tail. It also contains a benzimidazole ring. Bendamustine is used as a chemotherapy medication for treating cancers such as non-Hodgkin lymphoma and chronic lymphocytic leukemia.

A molecular model of Bendamustine in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
358.2668 C16H21Cl2N3O2

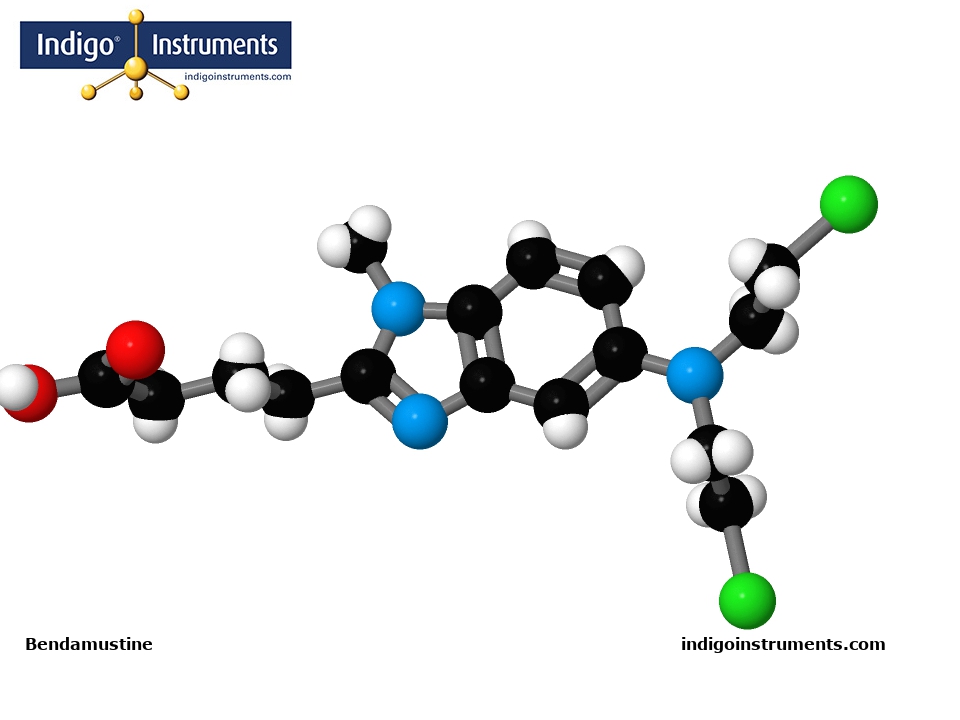

Bendamustine molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60111EAtom, Molymod, green (halogen), 1 hole, 17mm2
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm21
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees2
60311EAtom, Molymod, blue (nitrogen), 3 hole, 120 degrees, 23mm2
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm16
60401EAtom, Molymod, blue (nitrogen), 4 hole, 109.5 deg., 23mm1
61012EBond, Molymod, grey (single), 20mm19
61013EBond, Molymod, grey (double/triple), 35mm10
61015EBond, Molymod, opaque, 2mm (for spacefilling models)21
Synonyms
  • IUPAC Name: 4-[5-[bis(2-chloroethyl)amino]-1-methylbenzimidazol-2-yl]butanoic acid
  • InChI=1S/C16H21Cl2N3O2/c1-20-14-6-5-12(21(9-7-17)10-8-18)11-13(14)19-15(20)3-2-4-16(22)23/h5-6,11H,2-4,7-10H2,1H3,(H,22,23)
  • InChIKey: YTKUWDBFDASYHO-UHFFFAOYSA-N
  • SMILES: CN1C2=C(C=C(C=C2)N(CCCl)CCCl)N=C1CCCC(=O)O
  • CAS: 16506-27-7
