Ketoprofen

Assemble a molecule model of Ketoprofen out of Authentic Molymod Model Parts by Indigo

Ketoprofen is an oxo-carboxylic acid structure with 3-benzoylphenyl inserted at position 2 of a propionic acid molecule. Together, this classifies ketoprofen's chemical structure as a benzophenone. Ketoprofen is used as a non-steroidal anti-inflammatory & antipyretic (fever reducing) medicine.

A molecular model of Ketoprofen in the Molymod Hybrid Dome style uses the atoms & bonds in the parts list below. Our free 3D Molecular Model Builder shows other styles & allows for image rotation as an assembly guide.

Chemical data
Molecular Weight Chemical Formula
254.2848 C16H14O3

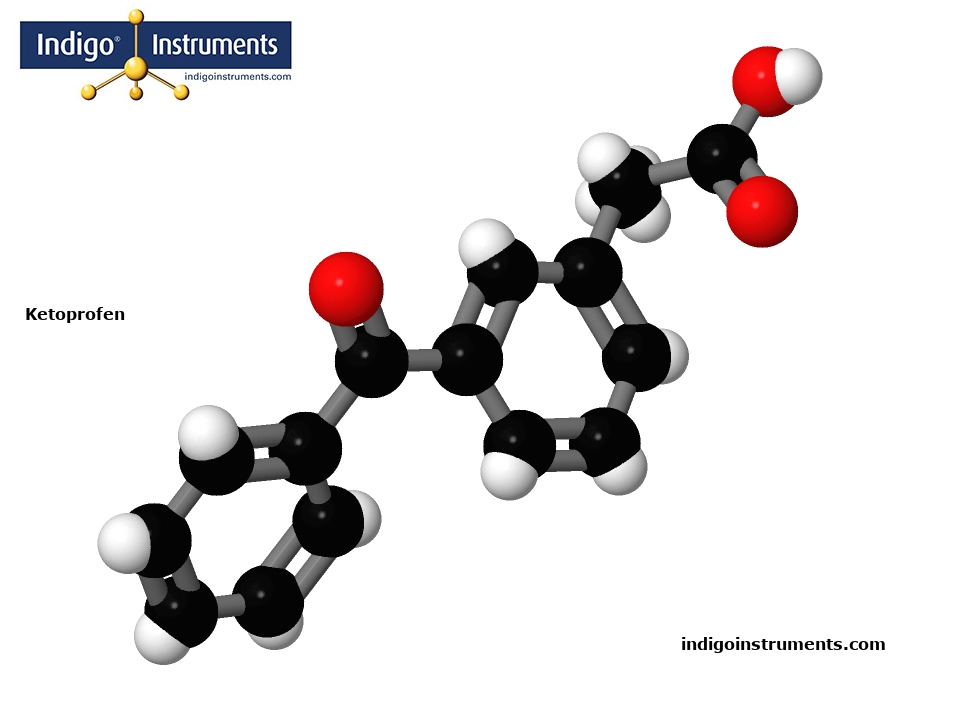

Ketoprofen molecular model built with Molymod Atoms & Bonds

Hybrid Dome
62053
Open Sphere
62009
Orbit Basic
68845NV
Orbit Flexible
68827W 68847W
Parts Synonyms
Parts
P/NDescriptionQTY
60150EAtom, Molymod, white (hydrogen), hemisphere, 19mm14
60200EAtom, Molymod, red (oxygen), 2 hole, 105 degrees3
60400EAtom, Molymod, black (carbon), 4 hole, 109.5 degrees, 23mm16
61012EBond, Molymod, grey (single), 20mm12
61013EBond, Molymod, grey (double/triple), 35mm16
61015EBond, Molymod, opaque, 2mm (for spacefilling models)14
Synonyms
IUPAC Name: 2-(3-benzoylphenyl)propanoic acid , InChI=1S/C16H14O3/c1-11(16(18)19)13-8-5-9-14(10-13)15(17)12-6-3-2-4-7-12/h2-11H,1H3,(H,18,19) , InChIKey: DKYWVDODHFEZIM-UHFFFAOYSA-N , SMILES: CC(C1=CC(=CC=C1)C(=O)C2=CC=CC=C2)C(=O)O , CAS: 22071-15-4 , 2-[3-(oxo-phenylmethyl)phenyl]propanoic acid , 2-[3-(benzoyl)phenyl]propionic acid , 2-(3-phenylcarbonylphenyl)propanoic acid , 2-(3-Benzoylphenyl)propionic acid , 2-(m-Benzoylphenyl)propionic acid , 3-BENZOYL-ALPHA-METHYLBENZENEACETIC ACID , 3-Benzoylhydratropic acid , Alrheumun , Aneol , Capisten , Ketoprofene , Orudis , Oruvail , Profenid ,
