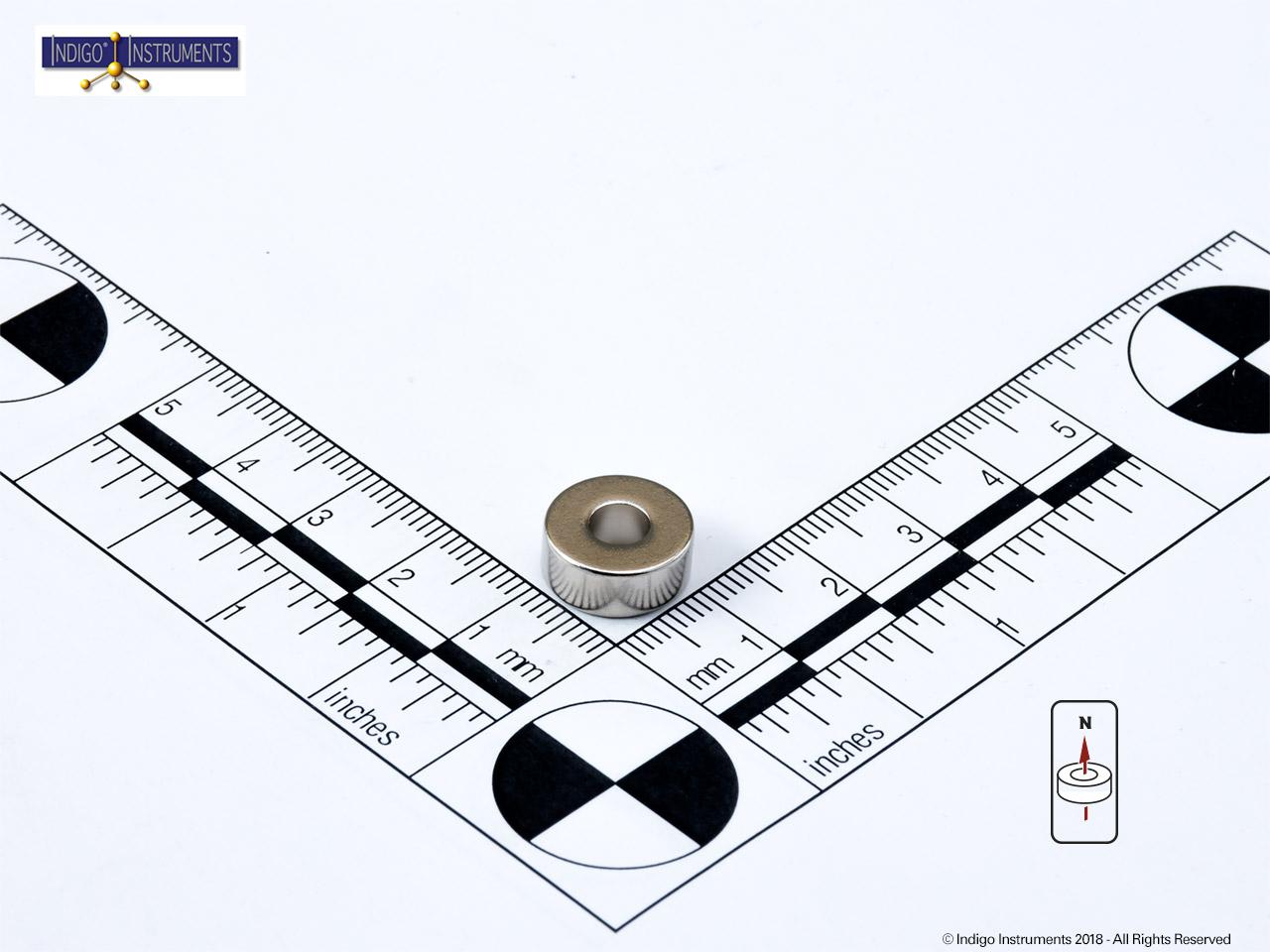

12.5x5x5mm Ring Magnets
SKU: 44607-5
This permanent ring magnet measures a 1/2" in diameter and with a hole and thickness measuring 1/4".
Click on the Specifications tab below to see holding force values for this ring magnet.
This permanent ring magnet measures a 1/2" in diameter and with a hole and thickness measuring 1/4".
Click on the Specifications tab below to see holding force values for this ring magnet.
The Mark I Magnaprobe can respond to as little as 0.3 gauss & will detect weaknesses in magnetic shielding. The Mark II Magnaprobe is a fast & convenient way to confirm magnet are positioned with their poles pointing correctly.
| SKU:44607-5; Size:OD12.5 x ID5 x 5 | |||||
| Pull Force in Pounds & Kilograms at different distances (mm) above Magnet | |||||
| Distance (mm): | 0 | 0.1 | 1 | 10 | |
|---|---|---|---|---|---|
| Pounds | 8.05 | 6.68 | 3.15 | 0.07 | |
| Kilogram | 3.66 | 3.04 | 1.43 | 0.03 | |
Magnet Documentation |
||||
|---|---|---|---|---|
| Drawing | Compliance | MSDS | ROHS | Graph |
 |
|
|
|
|
