Paint Masking Ring Magnet

SKU: 44607-5

$2.90USD or lower Each

Save More When You Buy More!
Quantity1+10+ 100+ 1000+
Price for each$2.90USD$2.66USD$2.30USD$1.94USD
Your savings - 8.28%20.69%33.1%
Qty:
[5]   2 Reviews    | Write a Review

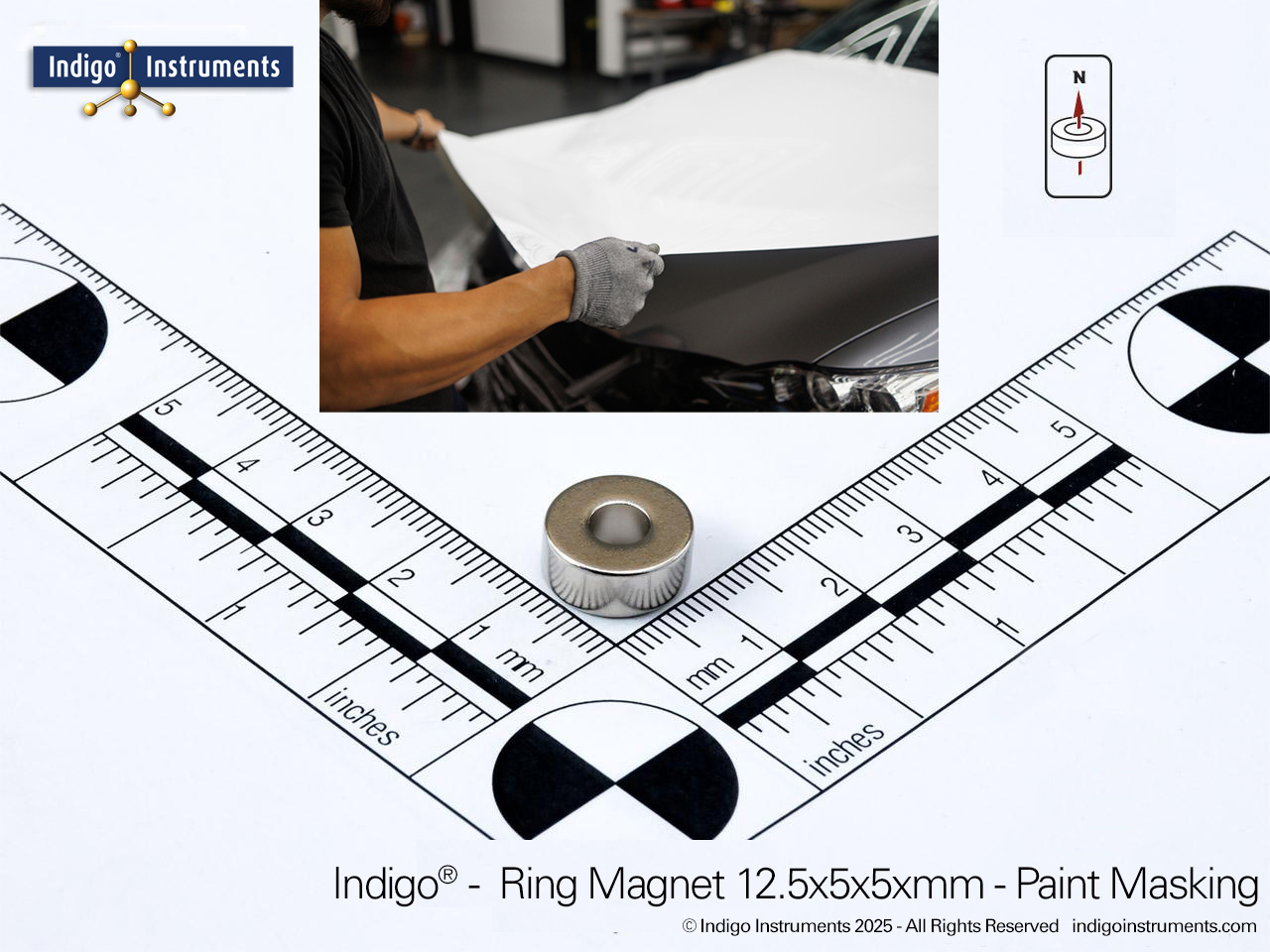

This 12.5x5x5mm N42 neodymium ring magnet is an excellent tool accessory in paint masking. It is particularly useful for producing repeatable, clean, and hands-free masking in both hobby-related and industrial applications.

Ring magnets can act as a mechanical masking device by holding down a masking disk, stencil, or film around a small circular area like a bolt head or connector. It can be centered around protrusions where spray access must be blocked but alignment is key. Or, use for stacking over shafts or threaded parts to shield them while painting the surrounding surface.

Some of the more interesting applications include model painting such as airbrush masking of cockpits or gun barrels. Automotive detailing, especially when used as bolt or rivet masks. PCB conformal coating Precision painting of knobs, dials, fasteners.

Other ring magnet sizes may be more suitable depending on the object it needs to surround, the thickness of the material being held down or the thickness of the underlying metal.

We have sold NdFeB magnets since 1996 and N42 grade since 2003, the best value for strength & temperature vs cost. Don't be fooled by claims of higher strength, N52, at lower cost.

Read the complete Google Customer Review for: "...(Indigo) N42 Neodymium magnets...the real deal…bought magnets on Amazon advertised as N52… another cheap Chinese fake"

We also provide complete Documentation including MSDS & ROHS; see below.

Out of Stock Until: 2025-10-01
Details

Other Applications for Magnet Paint Masking

  • Model painting (airbrush masking of cockpits or gun barrels)
  • Automotive detailing (bolt or rivet masks)
  • PCB conformal coating
  • Precision painting of knobs, dials, fasteners


Suggested Search Terms for More Info

  • DIY PCB masking jig
  • spray masking electronics PCB
  • magnet-assisted masking PCB
  • PCB coating overspray prevention
  • #PCBPrototyping
  • #MakerTools
  • #MagnetHacks
  • #PrecisionMasking
  • #SprayBoothDIY


Related information or images
Specifications
SKU:44607-5;     Size:OD12.5 x ID5 x 5
Pull Force in Pounds & Kilograms at different distances (mm) above Magnet
Distance (mm): 0 0.1 1 10
Pounds 8.05 6.68 3.15 0.07
Kilogram 3.66 3.04 1.43 0.03



Click on N42 Magnet Specifications for a table that lists general characteristics such as coercivity & remanence.

Click on N42 Magnet Tolerances for a table that lists the range of variation in thickness, diameter, etc.

Click on American vs Metric to see a table with conversions & as well as rounded mm equivalents closest to inch sizes.

Documentation

Magnet Documentation

Drawing Compliance MSDS ROHS Graph REACH
Magnet Technical Diagram Certificate of Compliance MSDS ROHS N42 Graph REACH Document
