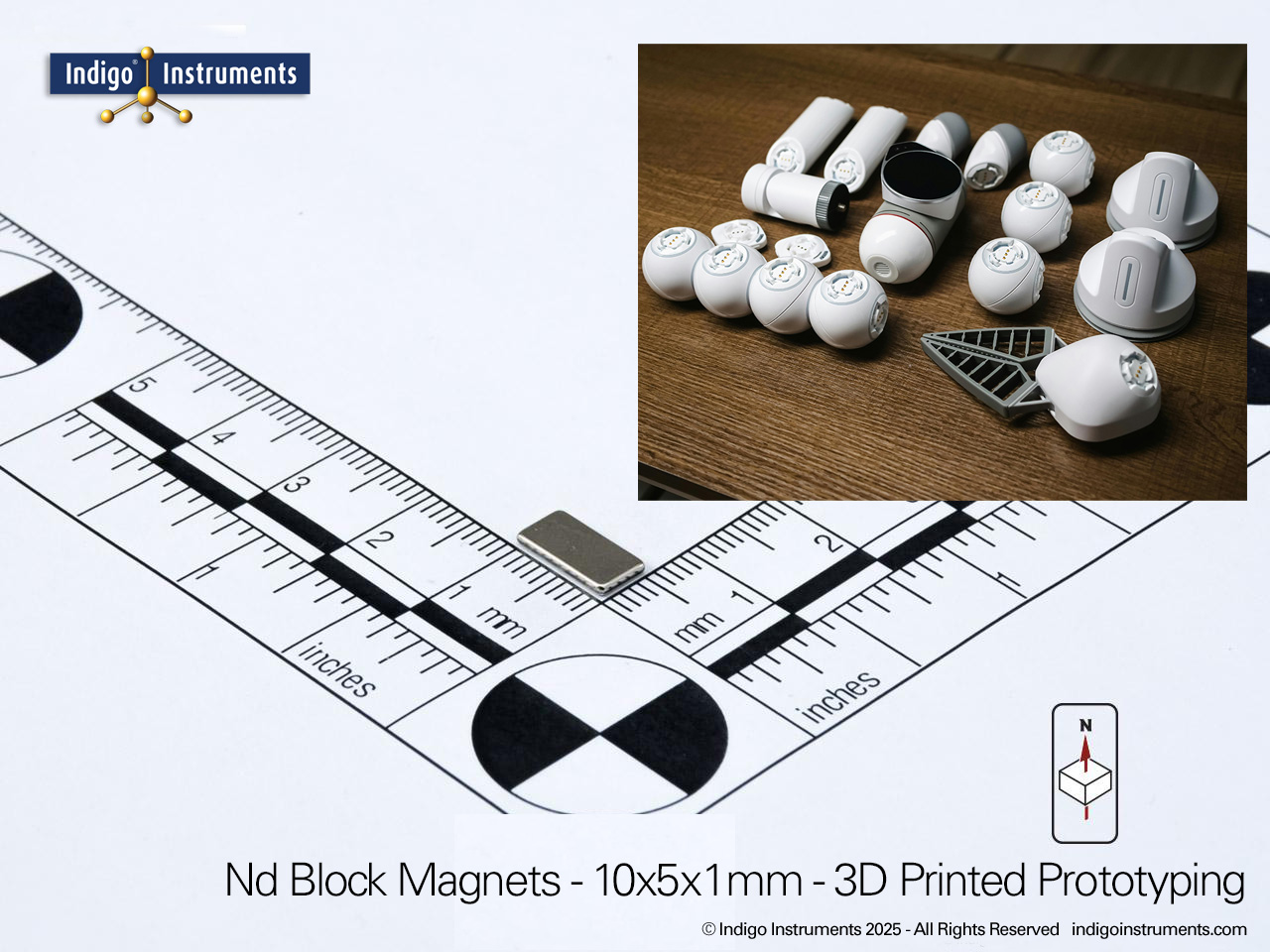

3D Printed Prototype Block Magnet
SKU: 44227-1
The 10x5x1mm rare earth block bar magnet has many potential uses in making 3D printed prototypes. Among them are:
- Snap-fit panels with magnets embedded in walls, lids or compartments create removable parts without hinges or fasteners. Pause printing at the desired layer, insert the magnet into a cavity, then resume printing to encase it. This produces a smooth, clean look where no screws or clips are visible.
- Modular prototypes (swappable parts) with interchangeable faces, modular mechanical assemblies, or electronics modules that snap together using the embedded magnets.
- Hidden assembly points (invisible fastening) with magnets that attach covers, panels, or skins with no visible connectors. Simply print two matching parts with hidden cavities for the magnets to yield a clean finish that looks like a single solid piece.
- Movable joints or hinges (low-torque motion) where embedded magnets allow slight light rotational or sliding movement between two parts (rotating display bases, swinging doors). This simplifies the type of moving parts by not having to add springs or complex hinges.
Advantages of 10x5x1mm Block Magnets
- Thin profile make them perfect for embedding flush into parts.
- Good diameter-to-strength ratio for prototyping without needing complex mechanical latches.
- Easy to design sockets into 3D-printed parts — especially with common slicer settings.
- Very clean, sleek appearance
- Easy swapping of parts for rapid prototyping
- Reduces need for screws or hardware
Disadvantages 10x5x1mm Block Magnets
- Requires precision placement
- Can weaken over time if not protected
- Risk of polarity mistakes
For more information on this topic, trying searching for: thin Nd magnets for 3D printing; small rare earth magnets for prototyping; Metric size disc magnets for modelling; DIY modular magnets for enclosures; embedded magnets for RC parts; magnetic closures for 3D printed cases
We have sold NdFeB magnets since 1996 and N42 grade since 2003, the best value for strength & temperature vs cost. Don't be fooled by claims of higher strength, N52, at lower cost.
Read the complete Google Customer Review for: "...(Indigo) N42 Neodymium magnets...the real deal…bought magnets on Amazon advertised as N52… another cheap Chinese fake"
We also provide complete Documentation including MSDS & ROHS; see below.
